Product Description

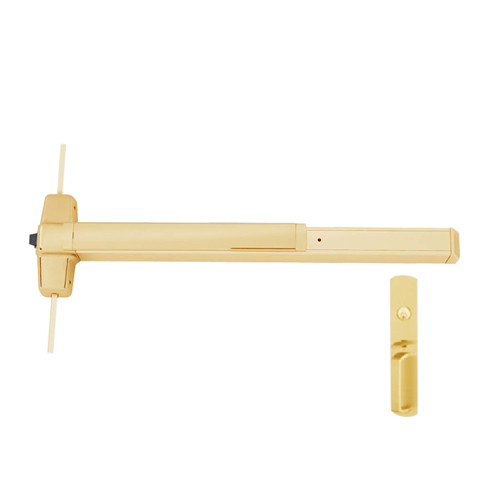

9857TP-US10-2 Von Duprin 9857 Series with 990TP Thumbpiece Surface Mount Three Point Latch Device in Satin Bronze
The 9857TP-US10-2 is a Von Duprin 9857 Series Surface Three Point Latch exit device in Satin Bronze (US10/612), sized for 3' doors. Thumbpiece Trim — thumbpiece-operated outside trim for keyed entry. Night latch function with thumbpiece activation. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: When servicing a 9857 three-point latch, check all three latch points independently. A misaligned top or bottom bolt can cause the whole device to bind. Adjust strikes one at a time, starting with the rim latch, then top, then bottom.
| Specifications | |
|---|---|
| Part Number | 9857TP-US10-2 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9857 |
| Function | Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Satin Bronze (US10/612) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9857 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- Satin Bronze finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
