Product Description

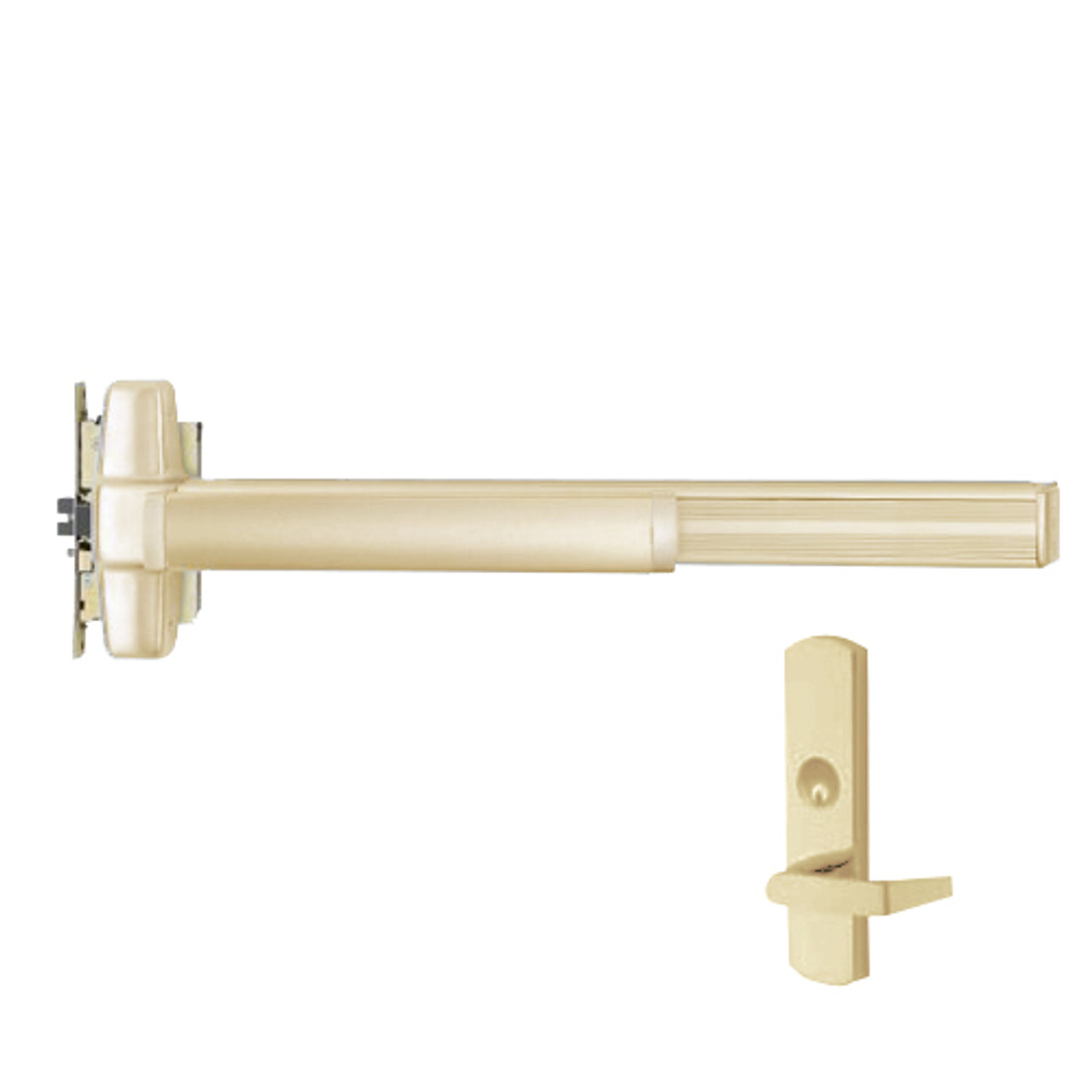

9875L-US4-4-LHR Von Duprin 9875 Series with 996L-M Lever Left Handed Mortise Lock Exit Device in Satin Brass
The 9875L-US4-4-LHR is a Von Duprin 9875 Series Mortise Lock exit device in Satin Brass (US4/606), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Mortise lock exit devices (9875) require a mortise pocket prepped into the door edge. On retrofit jobs, verify the existing mortise prep is compatible with Von Duprin's 9875 body dimensions. A Schlage L-series prep is close but not identical — don't assume cross-compatibility.
| Specifications | |
|---|---|
| Part Number | 9875L-US4-4-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |

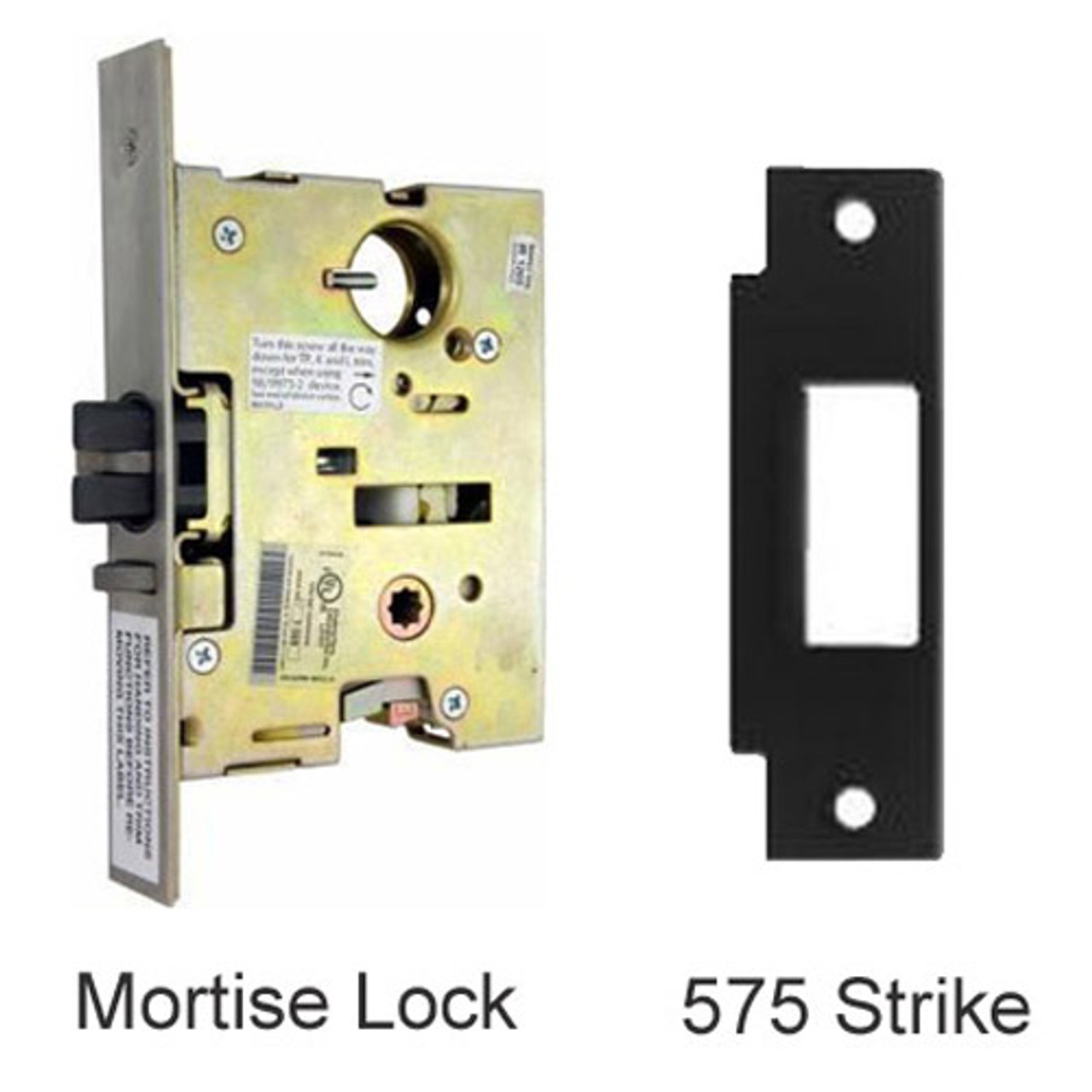

| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Brass (US4/606) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- Satin Brass finish
- Hex key dogging standard — hold latch retracted during business hours
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
