98ALK 4FT US28 Von Duprin 98 Series ALK Rim Exit Device Satin Aluminum
The 98ALK 4FT US28 is a Von Duprin 98 Series rim exit device in Satin Aluminum (US28/628), sized for 4' doors. Alarm Kit — audible alarm sounds when the exit device is activated. Deters unauthorized egress. No cylinder required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | 98ALK 4FT US28 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Alarm Kit |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required |
| Fire Rating | Non Fire Rated |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Aluminum finish
- Hex key dogging standard — hold latch retracted during business hours
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

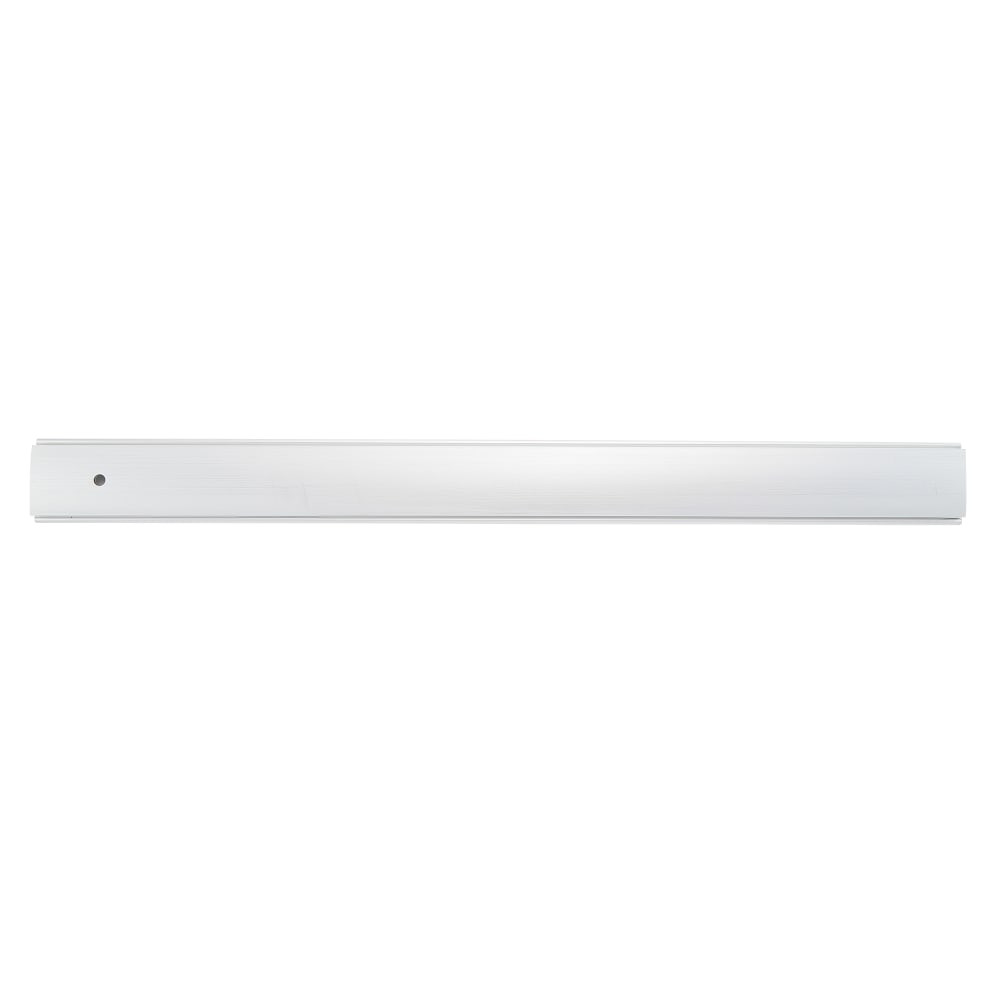

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
