Product Description

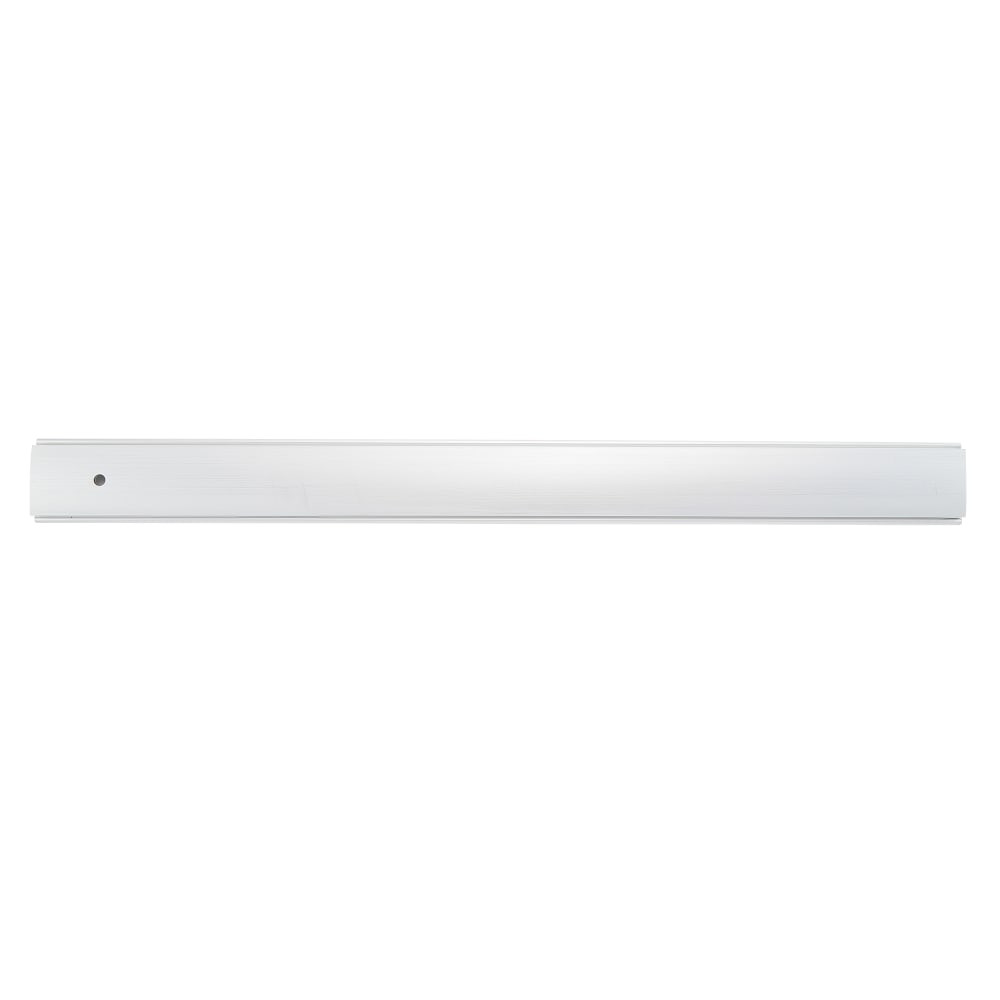

98L-02-F 3 US28 RHR Von Duprin Fire Rated 98 Series Lever Rim Exit Device Satin Aluminum
The 98L-02-F 3 US28 RHR is a Von Duprin 98 Series rim exit device with L-02 Lever trim in Satin Aluminum (US28/628), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | 98L-02-F 3 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Classroom |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-02 Lever trim — pull operation from outside
- Satin Aluminum finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
