Product Description

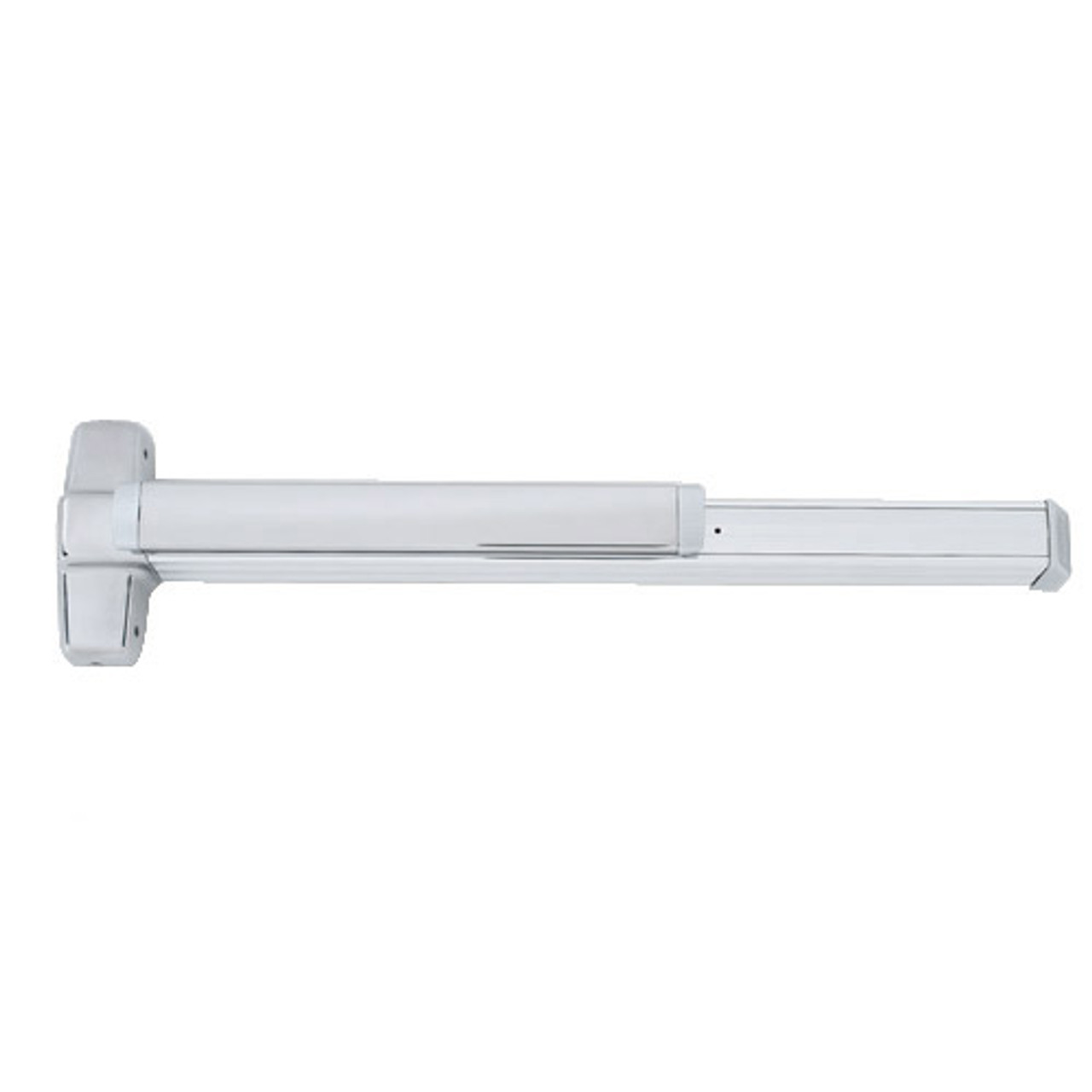

9947EO-F-US28-3 Von Duprin 9947 Series Exit Only Fire Rated Concealed Vertical Rod Exit Device in Anodized Aluminum
The 9947EO-F-US28-3 is a Von Duprin 9947 Series Concealed Vertical Rod exit device in Aluminum (US28/628), sized for 3' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When troubleshooting a 9947/9947WDC that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | 9947EO-F-US28-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Aluminum (US28/628) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- Aluminum finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
