Product Description
9947L-F-315-3-RHR Von Duprin 9947 Series with 996L Lever Right Handed Fire Rated Concealed Vertical Rod Exit Device in Black
The 9947L-F-315-3-RHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device in Black (315/315), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9947 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | 9947L-F-315-3-RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Black (315/315) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- Black finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

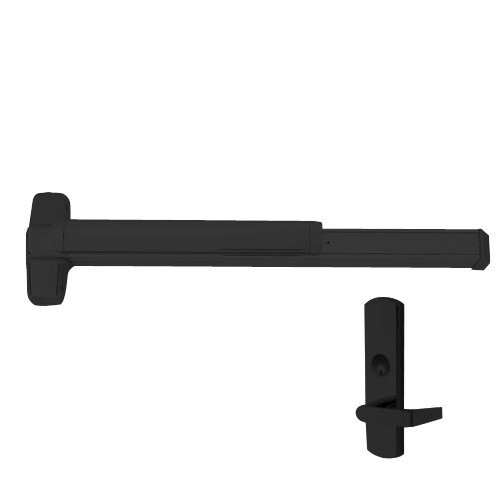

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
