Product Description
9947L-NL-03 3 US4 RHR Von Duprin 99 Series Night Latch Concealed Vertical Rod Exit Device in Satin Brass
The 9947L-NL-03 3 US4 RHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device with L-03 Lever trim in Satin Brass (US4/606), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 9947 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | 9947L-NL-03 3 US4 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Night Latch |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Brass (US4/606) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-03 Lever trim — pull operation from outside
- Satin Brass finish
- Hex key dogging standard — hold latch retracted during business hours

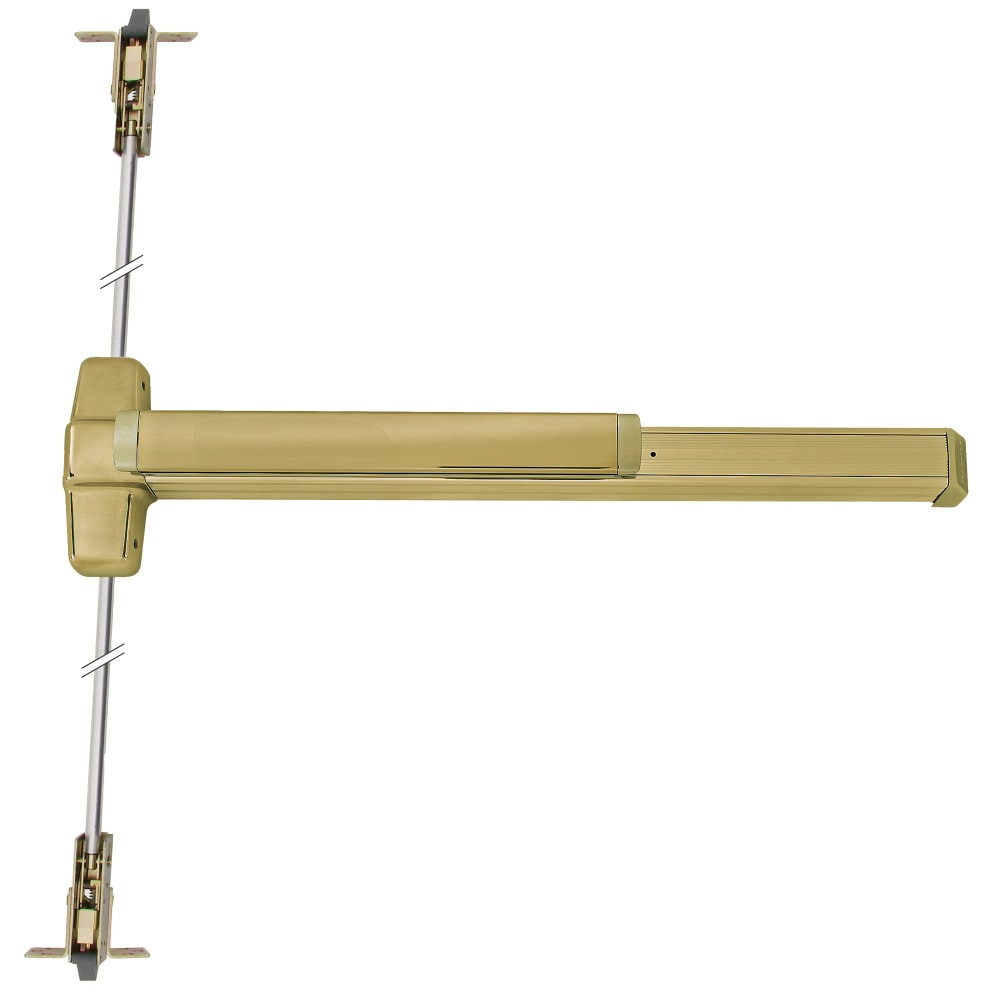

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
