Product Description
9947WDCL-KC-18-F 3 26D RHR Von Duprin 99 Series Key Capture Fire Rated Concealed Vertical Rod Exit Device in Satin Chrome
The 9947WDCL-KC-18-F 3 26D RHR is a Von Duprin 9947WDC Series Wood Door Concealed Vertical Rod exit device with L-18 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9947/9947WDC) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | 9947WDCL-KC-18-F 3 26D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947WDC |
| Function | Key Capture |
| Lever Design | L-18 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9947WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-18 Lever trim — pull operation from outside
- Satin Chrome finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

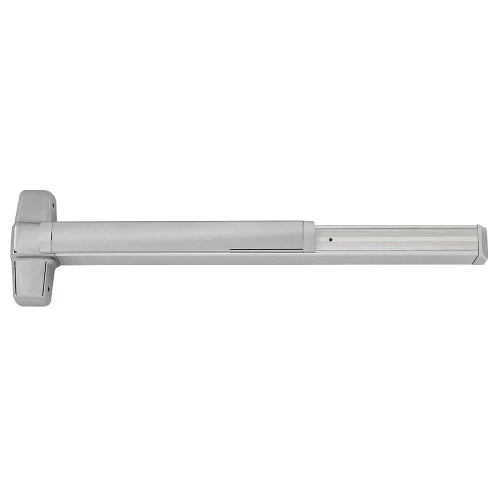

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
