Product Description
9949L-07-F 4 26D LHR Von Duprin 99 Series Classroom Fire Rated Concealed Vertical Cable Exit Device in Satin Chrome
The 9949L-07-F 4 26D LHR is a Von Duprin 9949 Series Concealed Vertical Cable exit device with L-07 Lever trim in Satin Chrome (US26D/626), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9949 concealed vertical cable device replaces rigid rods with flexible cable — easier to install and more forgiving on door prep tolerances. If you're doing a retrofit and the door routing isn't perfect, cable devices give you more wiggle room than rod devices.
| Specifications | |
|---|---|
| Part Number | 9949L-07-F 4 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9949 |
| Function | Classroom |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9949 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-07 Lever trim — pull operation from outside
- Satin Chrome finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging

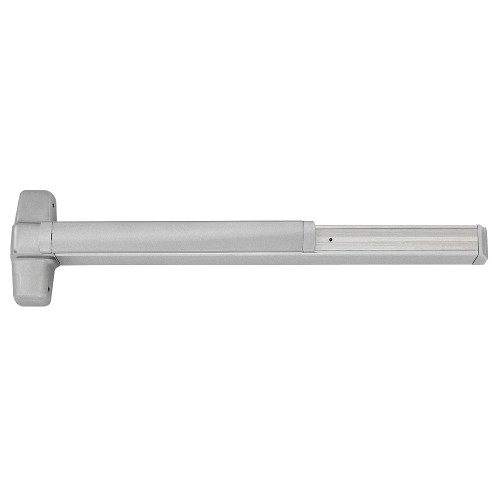

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
