Product Description

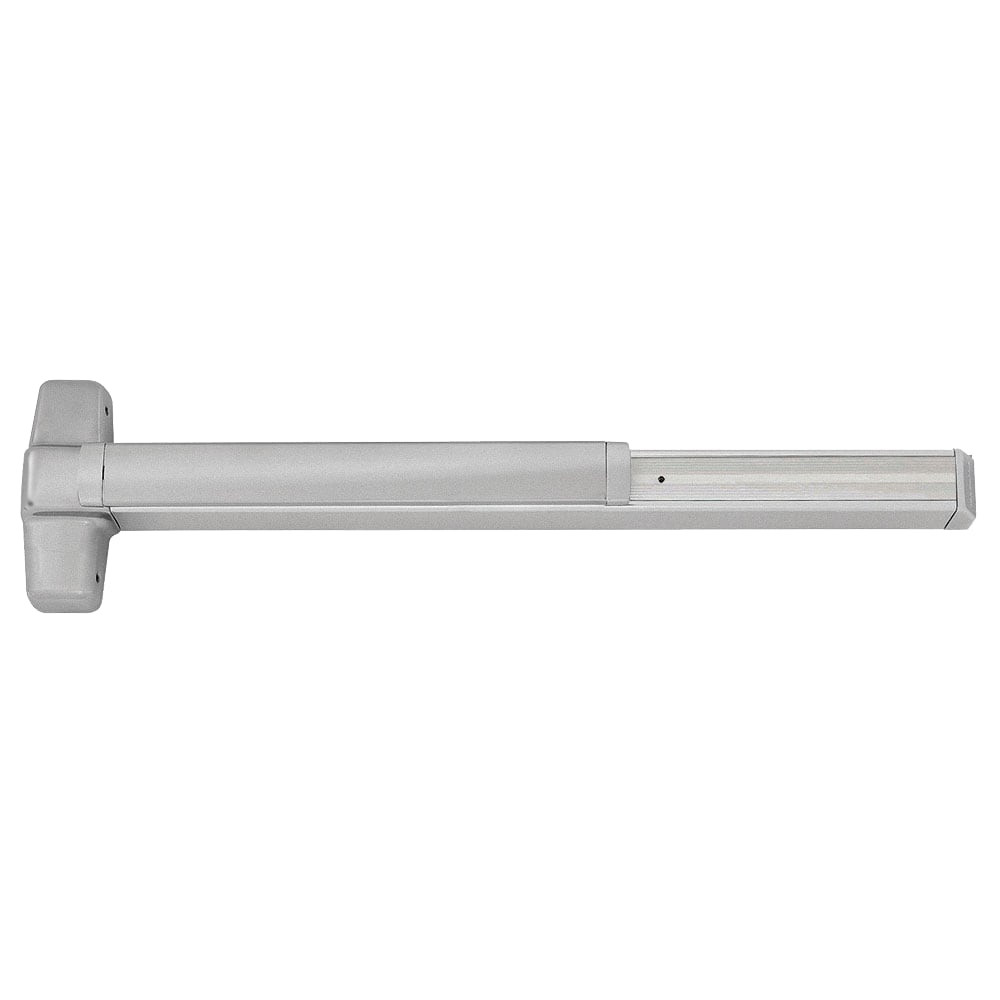

9949L-KC-05 3 26D LHR Von Duprin 99 Series Key Capture Concealed Vertical Cable Exit Device in Satin Chrome
The 9949L-KC-05 3 26D LHR is a Von Duprin 9949 Series Concealed Vertical Cable exit device with L-05 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9949 concealed vertical cable device replaces rigid rods with flexible cable — easier to install and more forgiving on door prep tolerances. If you're doing a retrofit and the door routing isn't perfect, cable devices give you more wiggle room than rod devices.
| Specifications | |
|---|---|
| Part Number | 9949L-KC-05 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9949 |
| Function | Key Capture |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9949 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-05 Lever trim — pull operation from outside
- Satin Chrome finish
- Hex key dogging standard — hold latch retracted during business hours
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
