Product Description
9949L-NL-05-F 3 26D RHR Von Duprin 99 Series Night Latch Fire Rated Concealed Vertical Cable Exit Device in Satin Chrome
The 9949L-NL-05-F 3 26D RHR is a Von Duprin 9949 Series Concealed Vertical Cable exit device with L-05 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Vertical cable devices (9949/9950WDC) are great for applications where rigid rods would be impractical — curved door tops, non-standard door prep, or doors that have seen better days. The cable routes through the door more easily and tolerates slight misalignment better than rigid rods.
| Specifications | |
|---|---|
| Part Number | 9949L-NL-05-F 3 26D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9949 |
| Function | Night Latch |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9949 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-05 Lever trim — pull operation from outside
- Satin Chrome finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

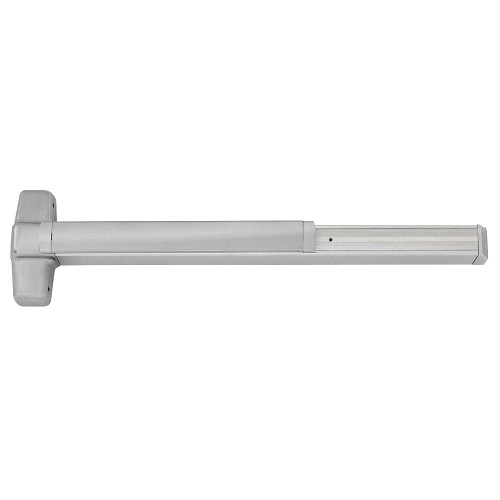

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
