Product Description

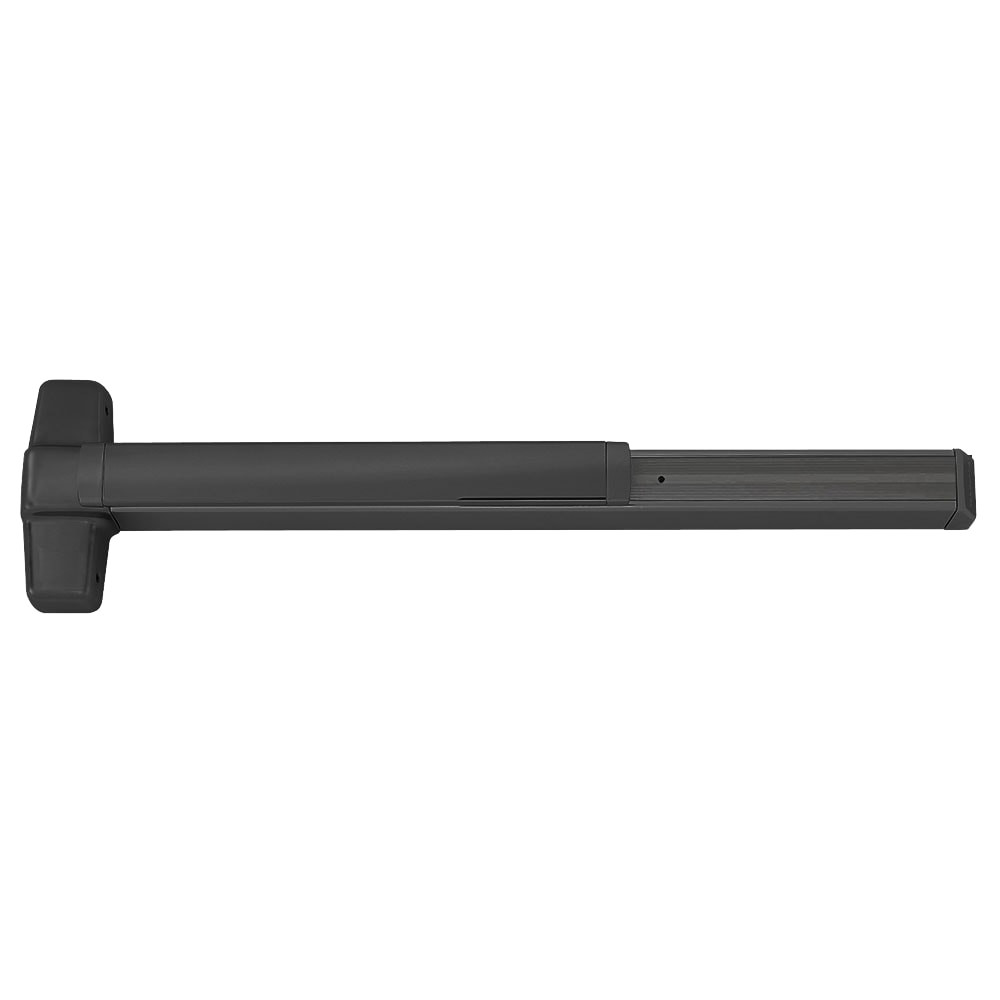

9949L-NL-06 3 315 RHR Von Duprin 99 Series Night Latch Concealed Vertical Cable Exit Device in Black
The 9949L-NL-06 3 315 RHR is a Von Duprin 9949 Series Concealed Vertical Cable exit device with L-06 Lever trim in Black (315/315), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When installing a 9949/9950WDC cable device, make sure the cable runs clean without kinks. A kinked cable will bind and cause the device to malfunction. Route the cable through the door channels smoothly and check operation before finishing the install.
| Specifications | |
|---|---|
| Part Number | 9949L-NL-06 3 315 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9949 |
| Function | Night Latch |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Black (315/315) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9949 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-06 Lever trim — pull operation from outside
- Black finish
- Hex key dogging standard — hold latch retracted during business hours
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
