Product Description

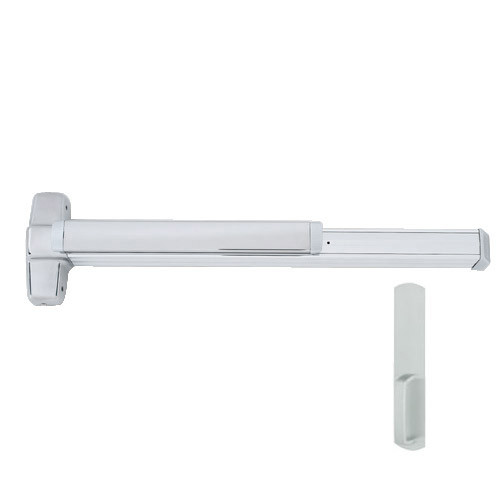

9950WDC-DT-US28-3 Von Duprin 9950 Series with 990DT Dummy Trim Wood Door Concealed Vertical Cable Exit Device in Anodized Aluminum
The 9950WDC-DT-US28-3 is a Von Duprin 9950WDC Series Wood Door Concealed Vertical Cable exit device in Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Vertical cable devices (9949/9950WDC) are great for applications where rigid rods would be impractical — curved door tops, non-standard door prep, or doors that have seen better days. The cable routes through the door more easily and tolerates slight misalignment better than rigid rods.
| Specifications | |
|---|---|
| Part Number | 9950WDC-DT-US28-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9950WDC |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Aluminum (US28/628) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 9950WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Aluminum finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
