Product Description
9950WDC-K-F-313-2 Von Duprin 9950 Series with 996K Knob Fire Rated Wood Door Concealed Vertical Cable Exit Device in Duranodic Dark Bronze
The 9950WDC-K-F-313-2 is a Von Duprin 9950WDC Series Wood Door Concealed Vertical Cable exit device in Dark Bronze (313/313), sized for 3' doors. Knob Trim — outside knob for keyed entry. Night latch function. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9949 concealed vertical cable device replaces rigid rods with flexible cable — easier to install and more forgiving on door prep tolerances. If you're doing a retrofit and the door routing isn't perfect, cable devices give you more wiggle room than rod devices.
| Specifications | |
|---|---|
| Part Number | 9950WDC-K-F-313-2 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9950WDC |
| Function | Knob Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Dark Bronze (313/313) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9950WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Dark Bronze finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

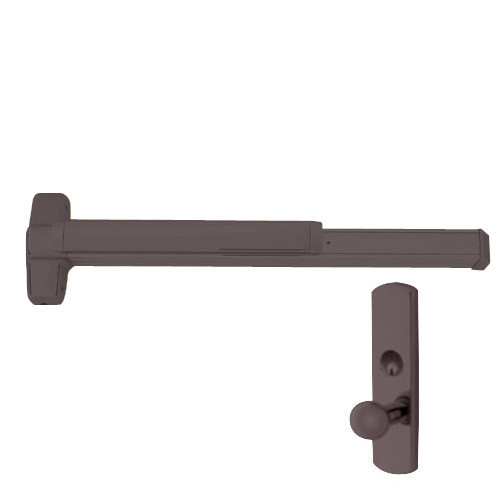

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
