Product Description

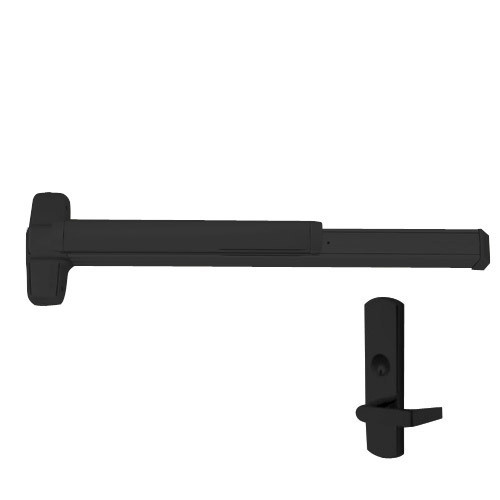

9950WDC-L-315-3-LHR Von Duprin 9950 Series with 996L Lever Left Handed Wood Door Concealed Vertical Cable Exit Device in Black
The 9950WDC-L-315-3-LHR is a Von Duprin 9950WDC Series Wood Door Concealed Vertical Cable exit device in Black (315/315), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: When installing a 9949/9950WDC cable device, make sure the cable runs clean without kinks. A kinked cable will bind and cause the device to malfunction. Route the cable through the door channels smoothly and check operation before finishing the install.
| Specifications | |
|---|---|
| Part Number | 9950WDC-L-315-3-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9950WDC |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Black (315/315) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9950WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Black finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
