Product Description

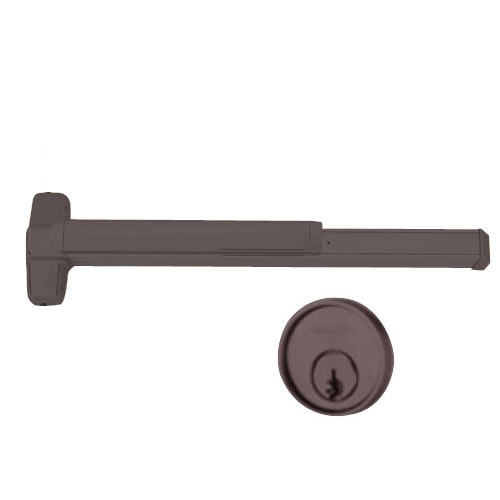

9950WDC-NL-OP-F-313-2 Von Duprin 9950 Series with 110WD Night Latch Fire Rated Wood Door Concealed Vertical Cable Exit Device in Duranodic Dark Bronze
The 9950WDC-NL-OP-F-313-2 is a Von Duprin 9950WDC Series Wood Door Concealed Vertical Cable exit device in Dark Bronze (313/313), sized for 3' doors. Night Latch with Optional Pull — outside lever locks and unlocks by key with optional pull handle. Inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When installing a 9949/9950WDC cable device, make sure the cable runs clean without kinks. A kinked cable will bind and cause the device to malfunction. Route the cable through the door channels smoothly and check operation before finishing the install.
| Specifications | |
|---|---|
| Part Number | 9950WDC-NL-OP-F-313-2 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9950WDC |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Dark Bronze (313/313) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9950WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Dark Bronze finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
