Product Description

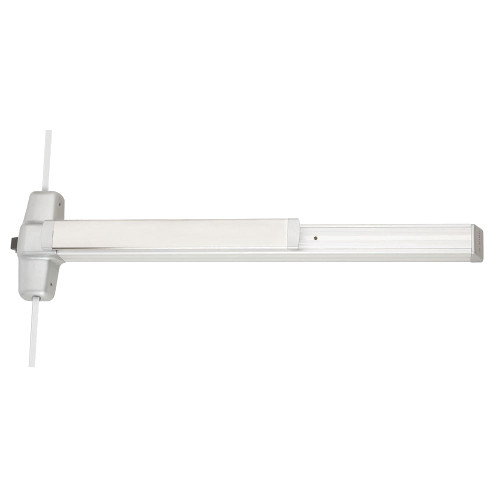

9957L-01 3 26D LHR Von Duprin 99 Series Classroom Surface Three Point Latch Exit Device in Satin Chrome
The 9957L-01 3 26D LHR is a Von Duprin 9957 Series Surface Three Point Latch exit device with L-01 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9957 three-point latch device provides three engagement points — rim latch plus top and bottom bolts. This is your go-to for high-security applications or large doors where a single latch point isn't enough to keep the door sealed. Popular on data centers and clean rooms.
| Specifications | |
|---|---|
| Part Number | 9957L-01 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Classroom |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-01 Lever trim — pull operation from outside
- Satin Chrome finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
