Product Description
9957L-DT-01-F 3 US28 RHR Von Duprin 99 Series Dummy Trim Fire Rated Surface Three Point Latch Exit Device in Anodized Aluminum
The 9957L-DT-01-F 3 US28 RHR is a Von Duprin 9957 Series Surface Three Point Latch exit device with L-01 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When servicing a 9957 three-point latch, check all three latch points independently. A misaligned top or bottom bolt can cause the whole device to bind. Adjust strikes one at a time, starting with the rim latch, then top, then bottom.
| Specifications | |
|---|---|
| Part Number | 9957L-DT-01-F 3 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Dummy Trim |
| Lever Design | L-01 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-01 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

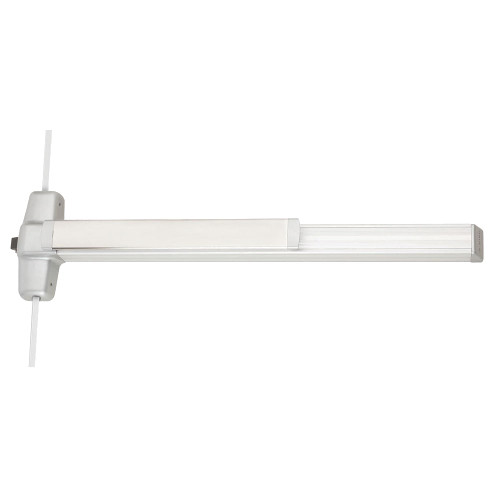

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
