Product Description

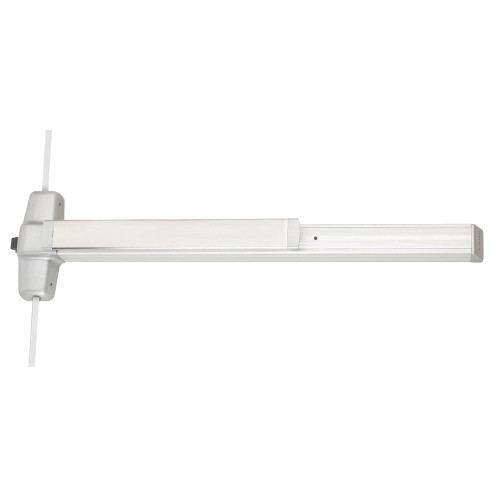

9957L-KC-17 3 26D LHR Von Duprin 99 Series Key Capture Surface Three Point Latch Exit Device in Satin Chrome
The 9957L-KC-17 3 26D LHR is a Von Duprin 9957 Series Surface Three Point Latch exit device with L-17 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Three-point latch devices like the 9957 give you the security of a multipoint lock on an exit device. The rim latch handles the primary latching while top and bottom bolts prevent door warping and forced entry. If the customer needs SCIF-level security on an exit door, this is what you spec.
| Specifications | |
|---|---|
| Part Number | 9957L-KC-17 3 26D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Key Capture |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-17 Lever trim — pull operation from outside
- Satin Chrome finish
- Hex key dogging standard — hold latch retracted during business hours
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
