9975L-07 3 US28 LHR Von Duprin 99 Series Classroom Mortise Lock Exit Device in Anodized Aluminum
The 9975L-07 3 US28 LHR is a Von Duprin 9975 Series Mortise Lock exit device with L-07 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9975 is the most complex exit device in the Von Duprin lineup. It has the most moving parts and requires the most precise door prep. When quoting 9975 jobs, add time for mortise pocket verification and potential adjustment. Get it right and it's bulletproof — rush it and you'll be back.
| Specifications | |
|---|---|
| Part Number | 9975L-07 3 US28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9975 |
| Function | Classroom |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9975 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- L-07 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Hex key dogging standard — hold latch retracted during business hours

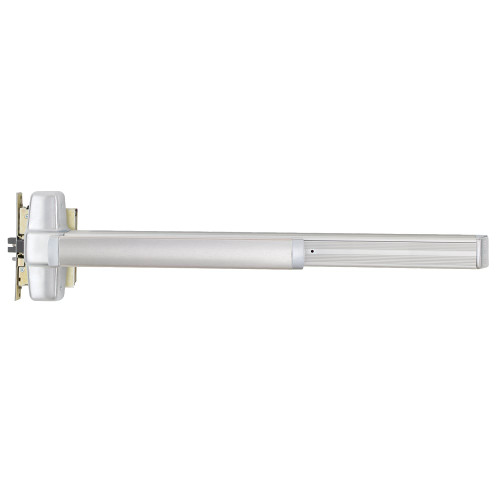

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
