Product Description
9975L-DT-07 3 US28 RHR Von Duprin 99 Series Dummy Trim Mortise Lock Exit Device in Anodized Aluminum
The 9975L-DT-07 3 US28 RHR is a Von Duprin 9975 Series Mortise Lock exit device with L-07 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 9975 is the most complex exit device in the Von Duprin lineup. It has the most moving parts and requires the most precise door prep. When quoting 9975 jobs, add time for mortise pocket verification and potential adjustment. Get it right and it's bulletproof — rush it and you'll be back.
| Specifications | |
|---|---|
| Part Number | 9975L-DT-07 3 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9975 |
| Function | Dummy Trim |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 9975 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- L-07 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Hex key dogging standard — hold latch retracted during business hours

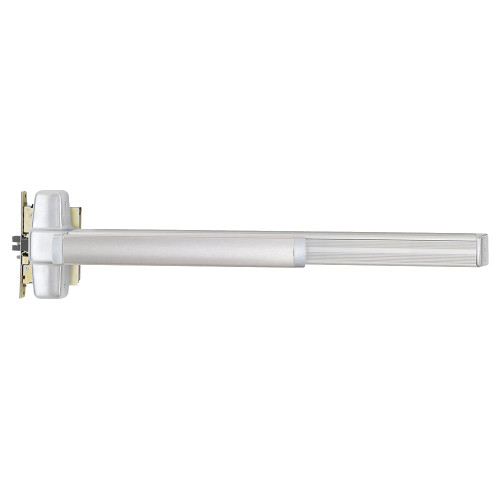

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
