Product Description
99L-DT-06 3 315 RHR Von Duprin 99 Series Dummy Trim Rim Exit Device in Black
The 99L-DT-06 3 315 RHR is a Von Duprin 99 Series Rim exit device with L-06 Lever trim in Black (315/315), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Rim exit devices mount on the surface of the door without requiring mortise or internal routing. The 99 series rim devices are the easiest to install on retrofit jobs where door prep is limited. Great for quick code compliance upgrades on existing doors.
| Specifications | |
|---|---|
| Part Number | 99L-DT-06 3 315 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Dummy Trim |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Black (315/315) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-06 Lever trim — pull operation from outside
- Black finish
- Hex key dogging standard — hold latch retracted during business hours

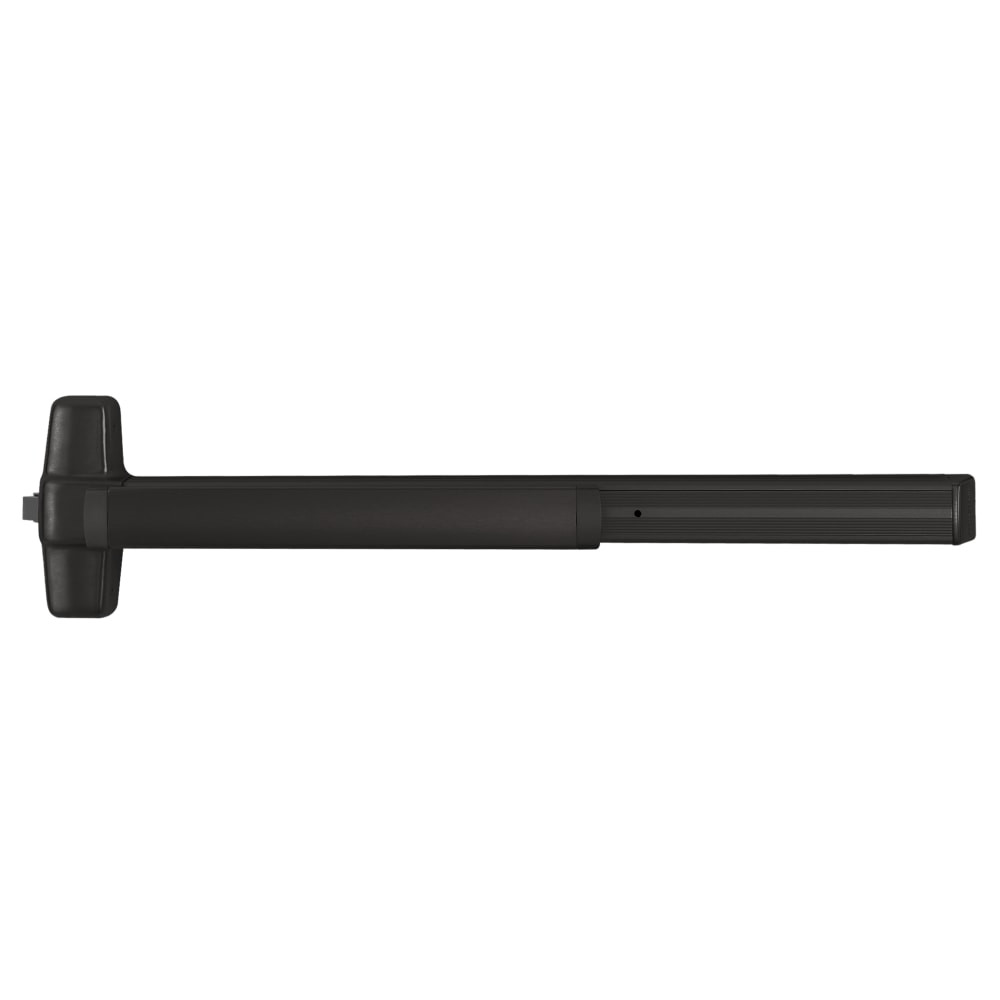

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
