Product Description

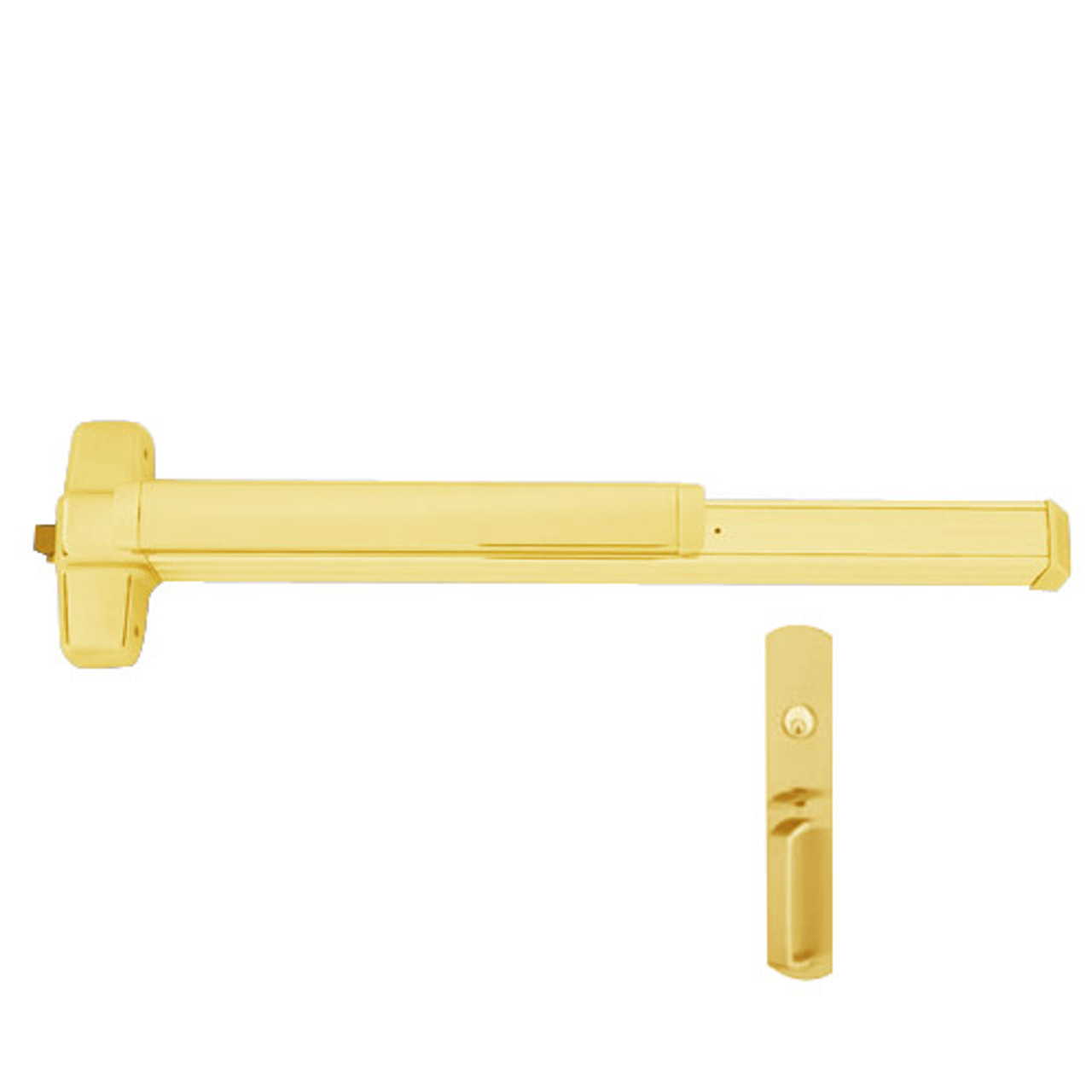

99TP-US3-3 Von Duprin 99 Series with 990TP Thumbpiece Rim Panic Exit Device in Bright Brass
The 99TP-US3-3 is a Von Duprin 99 Series Rim exit device in Bright Brass (US3/605), sized for 3' doors. Thumbpiece Trim — thumbpiece-operated outside trim for keyed entry. Night latch function with thumbpiece activation. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Rim exit devices mount on the surface of the door without requiring mortise or internal routing. The 99 series rim devices are the easiest to install on retrofit jobs where door prep is limited. Great for quick code compliance upgrades on existing doors.
| Specifications | |
|---|---|
| Part Number | 99TP-US3-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Brass (US3/605) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Bright Brass finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
