Product Description

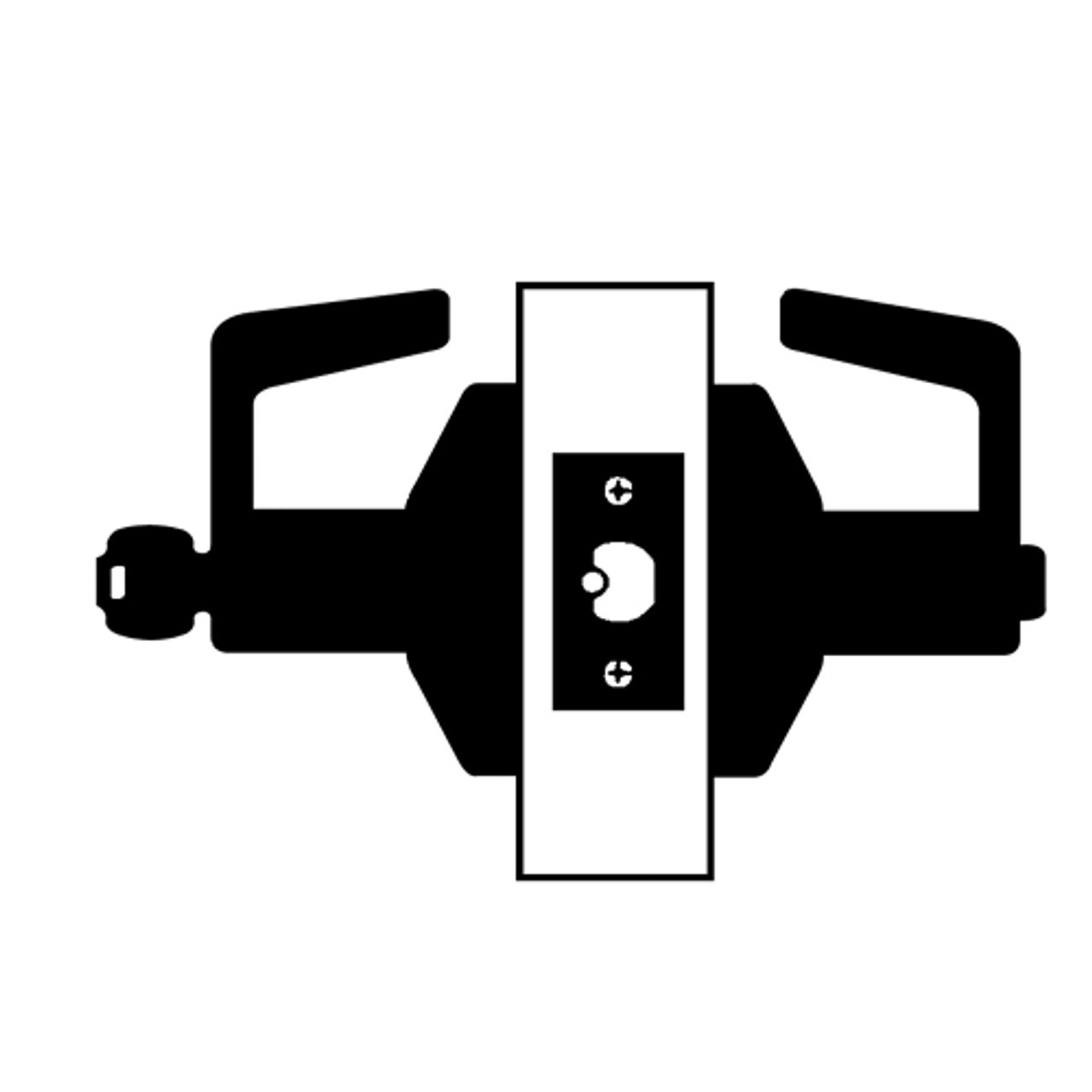

B501LD-Q-605 Falcon B Series Single Cylinder Entry Lock with Quantum Lever Style in Bright Brass Finish

The Falcon B501LD-Q-605 medium duty cylindrical lock is designed for the government/military, retail, industrial or multi-family and the B series lock is perfect replacement for existing locks, or a smart spec in new construction. The Falcon B Series cylindrical lock provides tough, reliable lock. The B series are certified to ANSI A156.2, Series 4000, Grade 2, UL Listed for 3-Hour fire door.

Entry lock - Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

Features and Benefits:

• Bright Brass finish
• Door thickness: 1-3/8" to 2" standard
• Backset: 2-3/4" standard
• Handing: Non handed
• Single cylinder
• ANSI: F82
• Core is not included
• Q (Quantum)lever trim
• Less Cylinder
• No keys or core is included with this lock, must be purchased separately
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
