Product Description

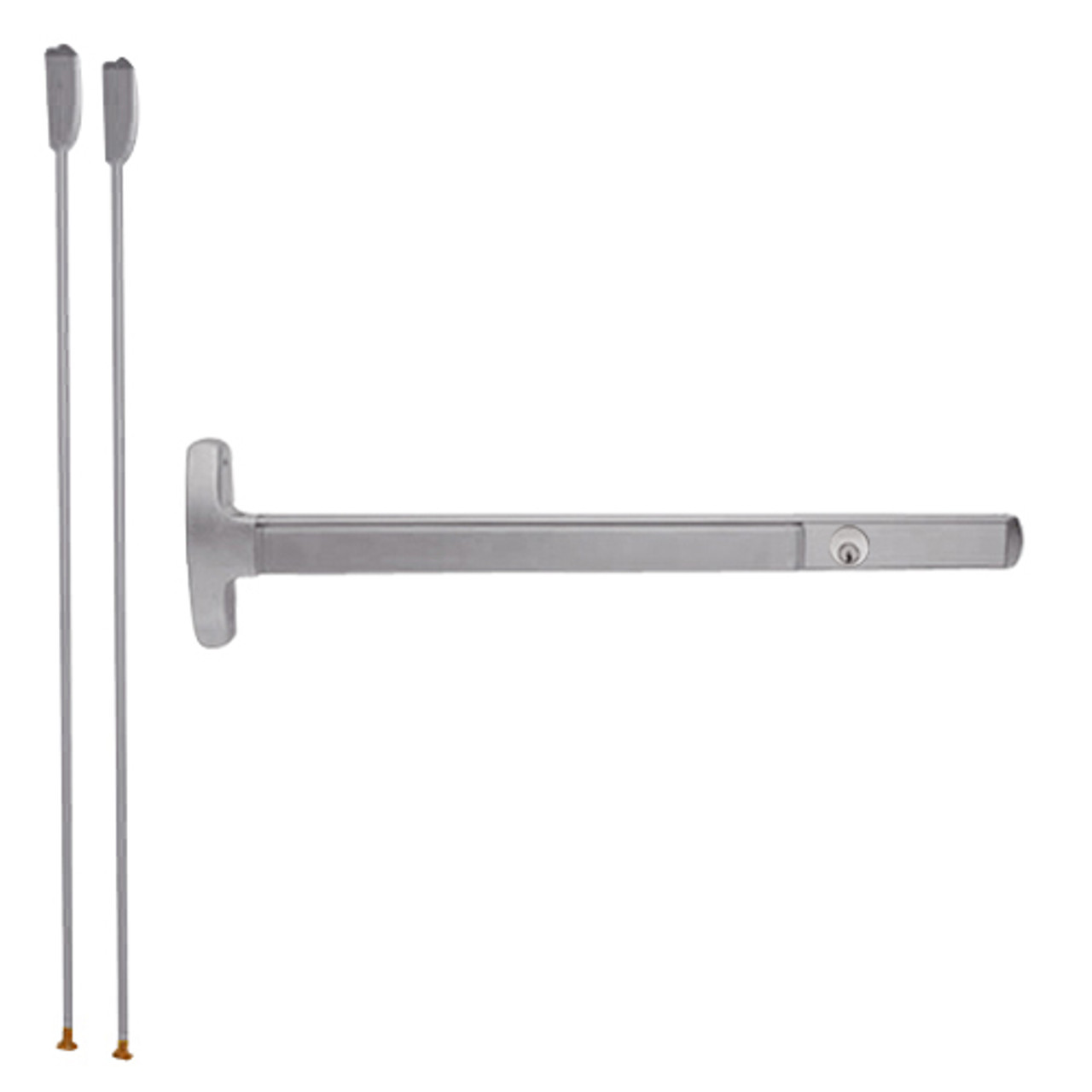

CD24-V-NL-OP-US32D-2 Falcon 24 Series Surface Vertical Rod Device with Night Latch Optional Pull in Satin Stainless Steel Finish

This device is for a 24" door

The Falcon CD24-V-NL-OP-US32D-2 surface vertical device is used for wood and metal door applications. High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation. This 24-V Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Satin Stainless Steel finish
• Handing: Non handed
• Night latch optional pull with less trim
• Latchbolt: Stainless steel, 3/4" throw
• Cylinder dogging: Uses 1-1/8" long mortise cylinder dogging with standard cam.
• Device lengths: 2 feet (24 inch)
• Non fire rated hardware
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard
• Strike: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor. (Included)
• Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard.
