Product Description

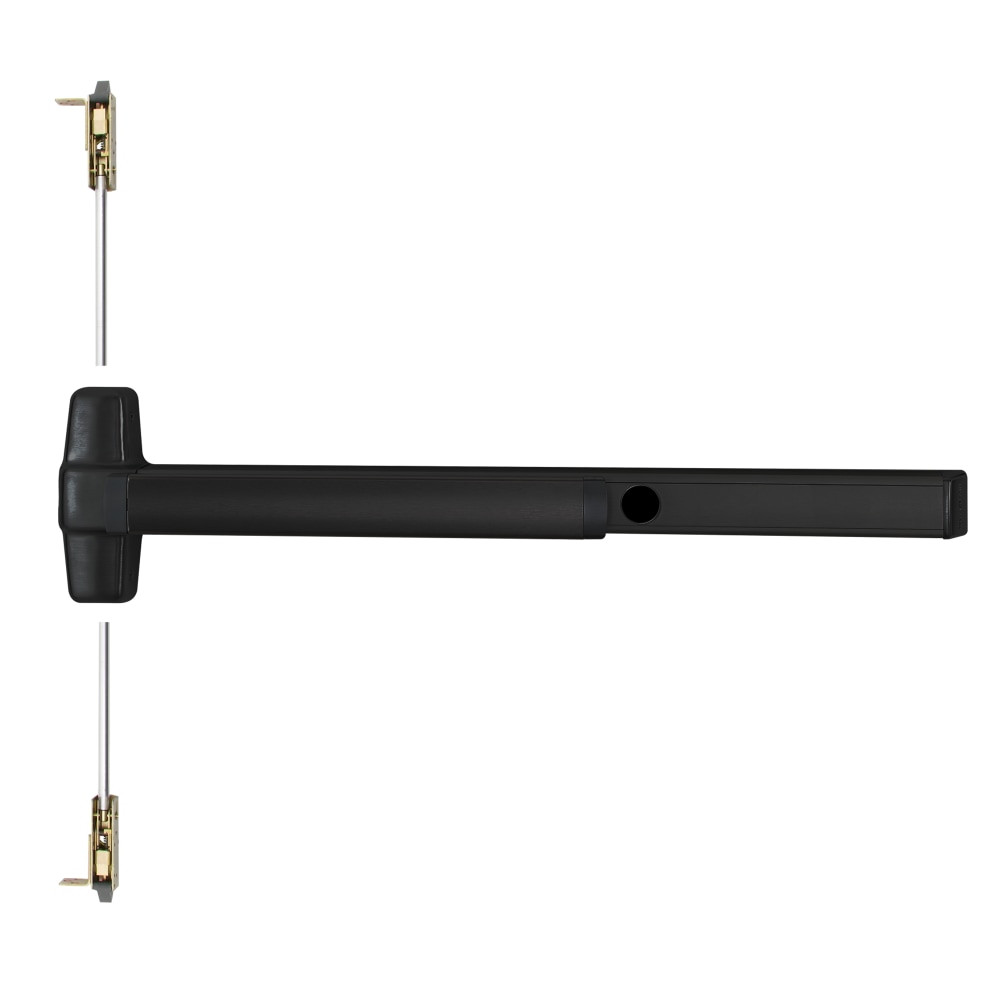

CD9847L-DT-06 4 315 RHR Von Duprin 98 Series Dummy Trim Concealed Vertical Rod Exit Device in Black
The CD9847L-DT-06 4 315 RHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-06 Lever trim in Black (315/315), sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When troubleshooting a 9847/9848 that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | CD9847L-DT-06 4 315 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Dummy Trim |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Black (315/315) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-06 Lever trim — pull operation from outside
- Black finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
