Product Description
CD9847L-DT-07 3 32D RHR Von Duprin 98 Series Dummy Trim Concealed Vertical Rod Exit Device in Satin Stainless Steel
The CD9847L-DT-07 3 32D RHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-07 Lever trim in Satin Stainless Steel (US32D/630), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9847/9848) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | CD9847L-DT-07 3 32D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Dummy Trim |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Stainless Steel (US32D/630) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-07 Lever trim — pull operation from outside
- Satin Stainless Steel finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

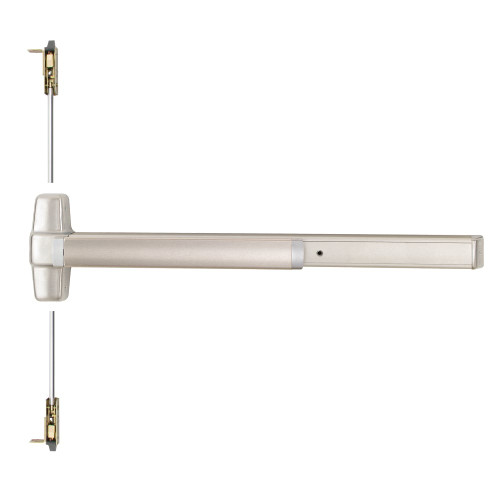

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
