Product Description

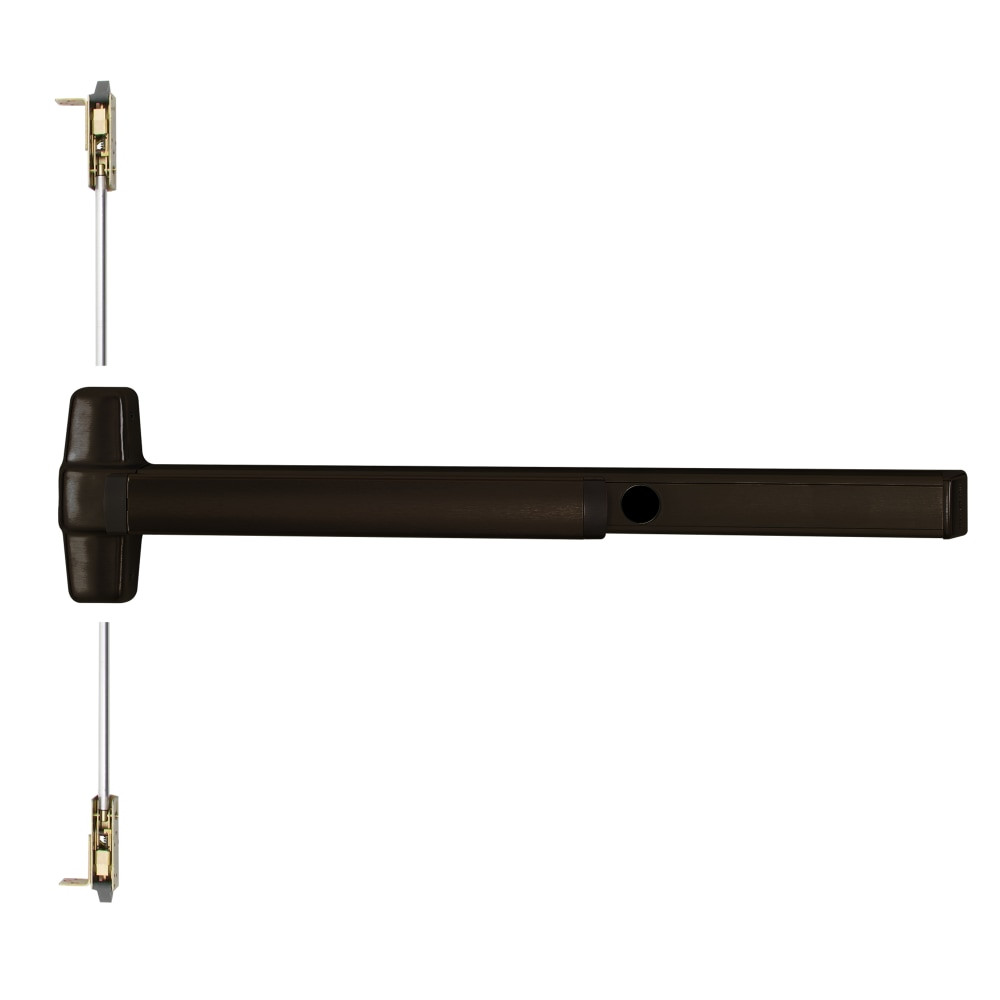

CD9847L-NL-07 4 313 RHR Von Duprin 98 Series Night Latch Concealed Vertical Rod Exit Device in Duranodic Dark Bronze
The CD9847L-NL-07 4 313 RHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-07 Lever trim in Duranodic Dark Bronze (313/313), sized for 4' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When troubleshooting a 9847/9848 that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | CD9847L-NL-07 4 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Night Latch |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-07 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location

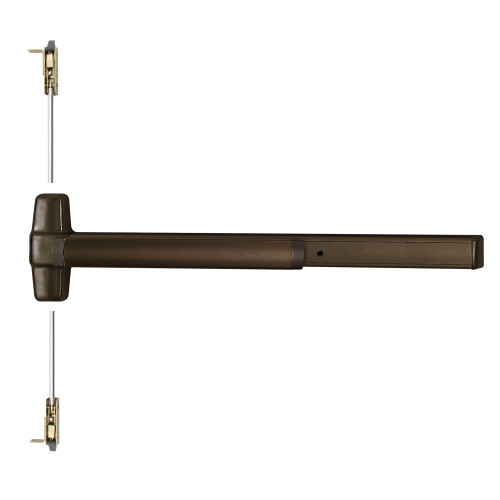

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
