Product Description
CD9875L-US3-4-LHR Von Duprin with 996L-M Lever Left Handed Mortise Lock Exit Device with Cylinder Dogging in Bright Brass
| Part Number Breakdown: CD9875L-US3-4-LHR | |
|---|---|
| 9875 | 9875 Series Mortise Lock Exit Device |
| CD | Controlled Dismiss |
| L | Lever Trim |
| US3 | Bright Brass (BHMA 605) |
| 4 | 4 Foot Door |
| LHR | Left Hand Reverse |
The CD9875L-US3-4-LHR is a Von Duprin 9875 Series Mortise Lock exit device with Cylinder Dogging (CD) in Bright Brass, sized for 4 Foot doors. Lever Trim — outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately.
Cylinder Dogging (CD) — motorized dogging via access control, no key needed. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9875 Series mortise lock exit device gives you a deadbolt AND latch in one unit — the mortise case sits inside the door edge. More security than rim-mount, more holding force than a standard cylindrical lock. Standard spec for high-security commercial doors.
| Specifications | |
|---|---|
| Part Number | CD9875L-US3-4-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 Series |
| Electronics | CD — Cylinder Dogging (CD) |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (deadbolt and latch in a mortise case inside the door edge) |
| Finish | Bright Brass (US3/605) |
| Door Size | 4 Foot |
| Handing | Left Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series Mortise Lock exit device — Grade 1 architectural-grade panic hardware
- Cylinder Dogging (CD) — motorized dogging via access control, no key needed
- Mortise Lock (deadbolt and latch in a mortise case inside the door edge)
- Bright Brass finish
- Ships less cylinder — order separately to match your keyway
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

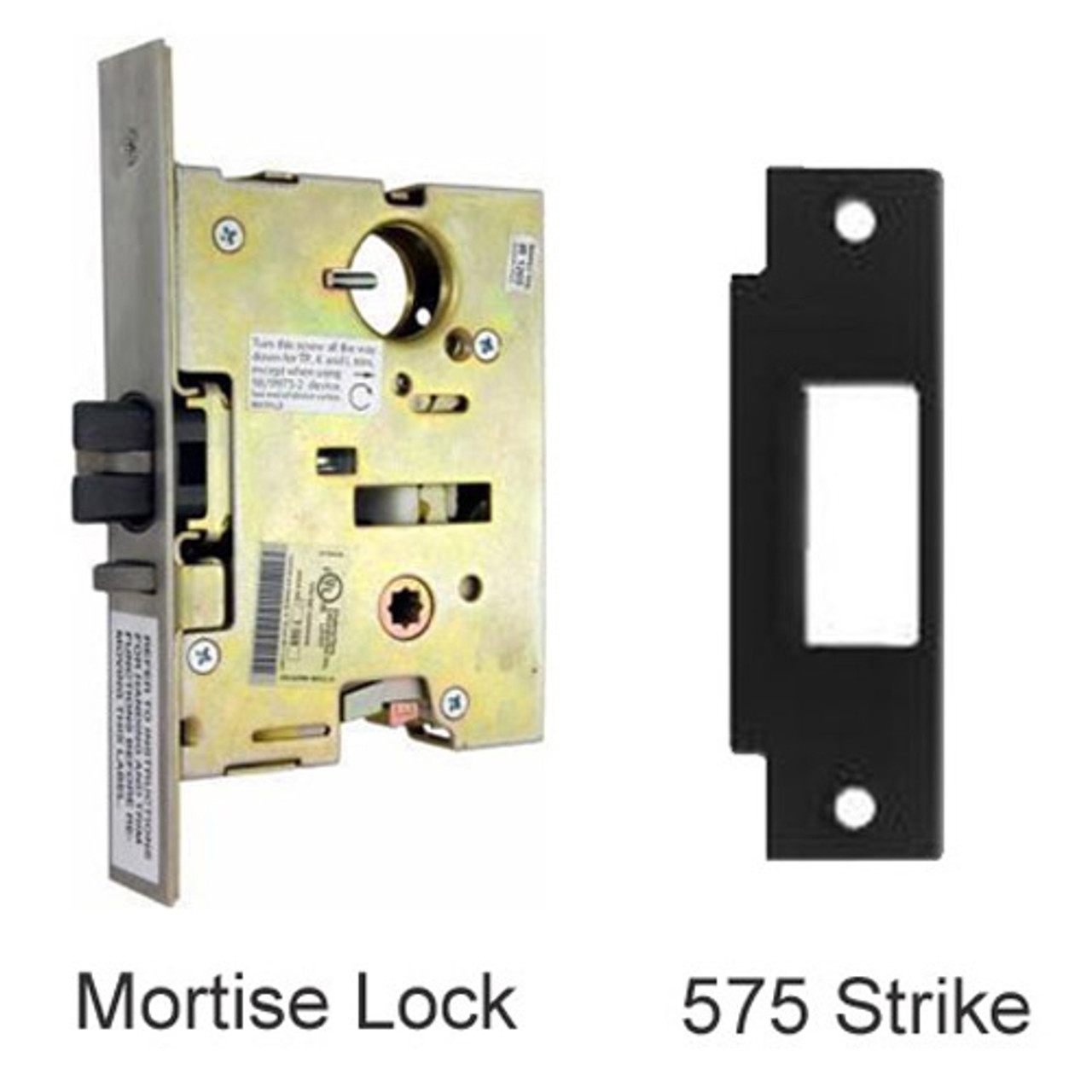

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
