Product Description
CD98EO-US26-4 Von Duprin 98 Series Exit Only Rim Exit Device with Cylinder Dogging in Bright Chrome
The CD98EO-US26-4 is a Von Duprin 98 Series rim exit device in Bright Chrome (US26/625), sized for 4' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | CD98EO-US26-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Bright Chrome (US26/625) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Bright Chrome finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
- Hex key dogging standard — hold latch retracted during business hours

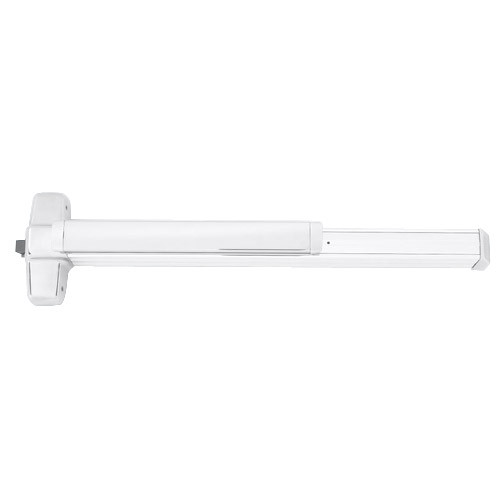

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
