Product Description
CD9947NL-US10-4 Von Duprin 9947 Series with 990NL Night Latch Concealed Vertical Rod Exit Device with Cylinder Dogging in Satin Bronze
The CD9947NL-US10-4 is a Von Duprin 9947 Series Concealed Vertical Rod exit device in Satin Bronze (US10/612), sized for 4' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9947 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | CD9947NL-US10-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Bronze (US10/612) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- Satin Bronze finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
- Hex key dogging standard — hold latch retracted during business hours

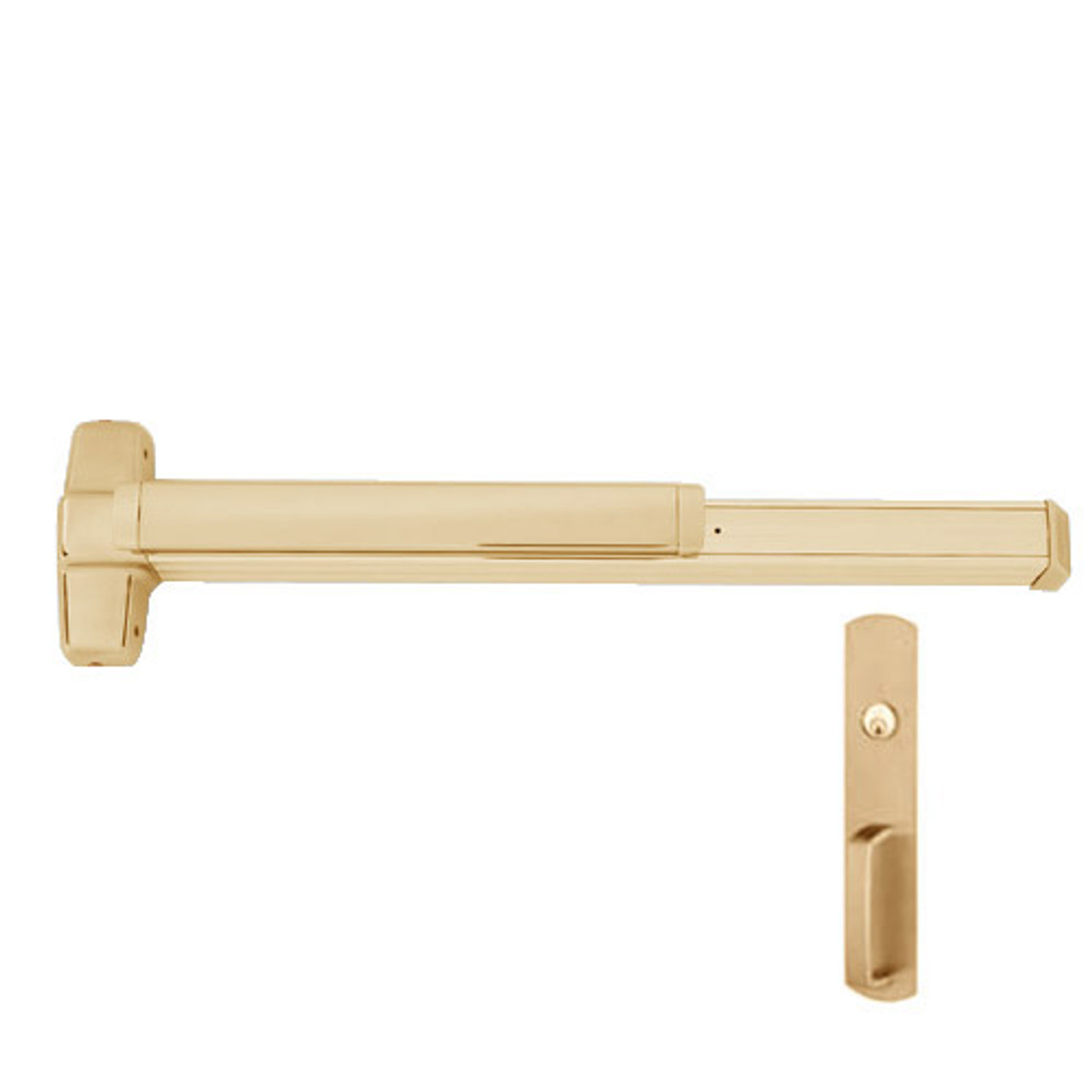

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
