Product Description

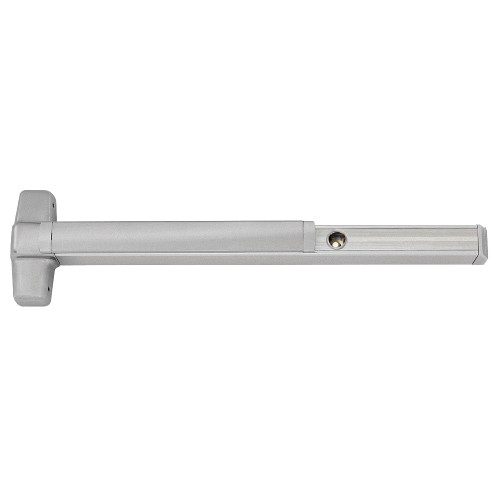

The CD9949L-18 3 26D RHR is a Von Duprin 99 Series Concealed Vertical Cable exit device with L-18 Lever trim in Satin Chrome (26D/626), sized for 3' doors. Classroom function — Outside lever is locked until unlocked by key, relocks automatically when door closes. Electrified model with Controlled Dismiss (CD). Ships less cylinder — order a mortise cylinder separately to match your keyway.
| Brand | Von Duprin (Allegion) |
| Part Number | CD9949L-18 3 26D RHR |
| Series | Von Duprin 99 / 9949 |
| Function | Classroom |
| Lever Design | L-18 Lever |
| Finish | Satin Chrome (26D/626) |
| Handing | RHR |
| Door Size | 3 Foot |
| Device Type | Concealed Vertical Cable |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Electronics | CD — Controlled Dismiss |
| Warranty | 3 years limited manufacturer's warranty |
- Concealed vertical cable system for narrow stile or wood door applications
- L-18 Lever trim — pull operation from outside for easier entry
- CD (Controlled Dismiss) for access control integration
- Ships less cylinder — order a mortise cylinder separately to match your keyway.
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Accessories: Compatible with Von Duprin trims, mullions, and surface-mounted closers. Pair with the 050500 strike for standard installations. Electrified models require a compatible power supply (PS873 or PS914). Contact us for help selecting the right trim and accessories for your door configuration.
Lock Depot sells brand new Von Duprin products with the full manufacturer warranty.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
