Product Description
CD9975HL-US26D-3 Von Duprin 9975 Series Hospital Latch Mortise Lock Exit Device with Cylinder Dogging in Satin Chrome
The CD9975HL-US26D-3 is a Von Duprin 9975 Series Mortise Lock exit device in Satin Chrome (US26D/626), sized for 3' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9975 mortise lock exit device combines exit device push bar with a mortise lock body recessed into the door edge. This gives you the latching security of a mortise lock with code-compliant panic hardware. Popular on storefront doors where you need both security and life safety.
| Specifications | |
|---|---|
| Part Number | CD9975HL-US26D-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9975 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Chrome (US26D/626) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Controlled Dismiss |
- Von Duprin 9975 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- Satin Chrome finish
- Controlled Dismiss — Controlled Dismiss — electrically locks and unlocks the exit device from a remote location
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

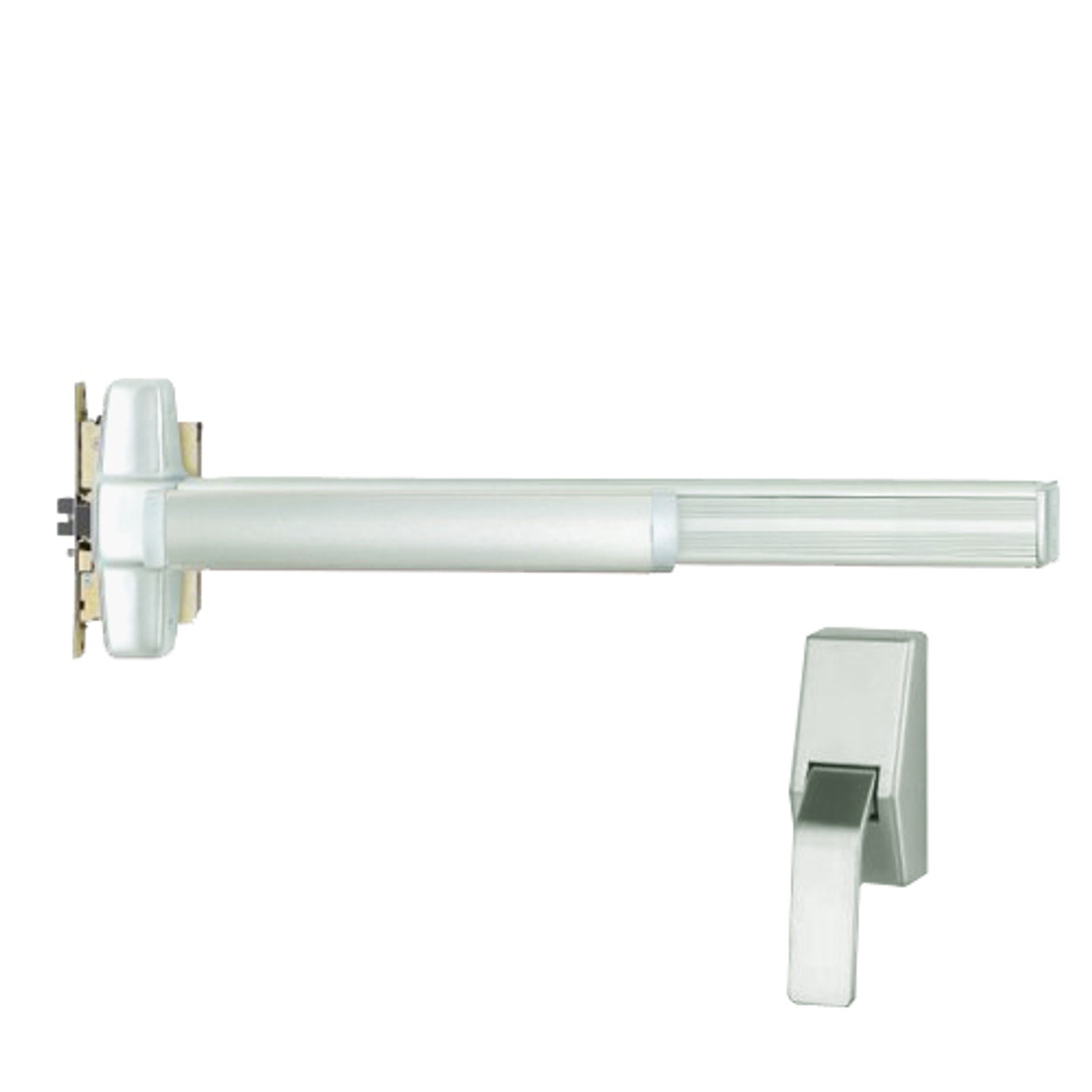

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
