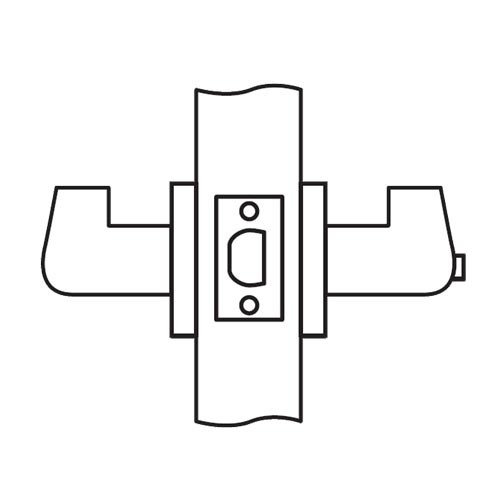

CL04-VC-15 Arrow Cylindrical Lock C Series Patio with Virgo Lever Design in Satin Nickel

Product Description

CL04-VC-15 Arrow Cylindrical Lock C Series Patio with Virgo Lever Design in Satin Nickel Finish

The Arrow CL04-VC-15 Patio function lock is designed for light commercial applications. The return of the Comet brings with it the exceptional value and quality required to meet the demands of the single and multi-family housing markets. The C series are certified to BHMA A156.2, Series 4000, Grade 2. Combining a variety of lever designs, convenient installation and the Arrow benchmark for dependability, the C Series is perfect in most any space.

Patio: lever locked by inside button. Deadlocking latch standard.

Features and Benefits:

• Satin Nickel finish
• Strike: 1-3/4" x 2-1/4", 1-1/4" lip, square corner
• Latch bolt: 1/2" throw, 1-1/8" front
• Backset: 2-3/4" or 2-3/8" Adjustable backset
• Includes 3 faceplates
• Virgo lever trim design
• Construction: Tubular chassis
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
• Handing: Non-handed
