Product Description

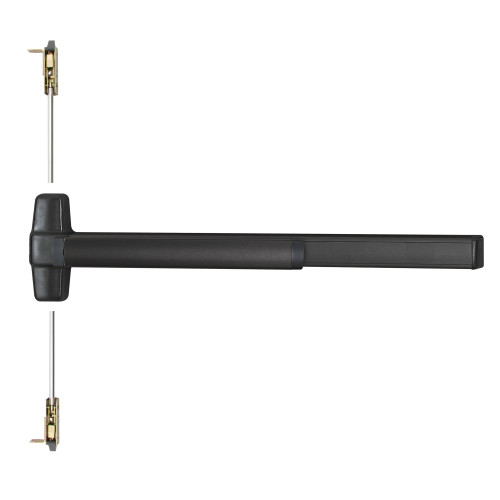

CXA9847L-NL-06 3 315 LHR Von Duprin 98 Series Night Latch Concealed Vertical Rod Exit Device in Black
The CXA9847L-NL-06 3 315 LHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-06 Lever trim in Black (315/315), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9847 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | CXA9847L-NL-06 3 315 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Night Latch |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Black (315/315) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Chexit Alarm |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-06 Lever trim — pull operation from outside
- Black finish
- Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit

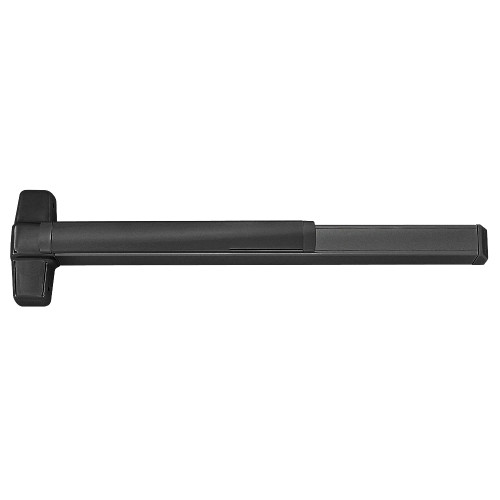

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
