Product Description

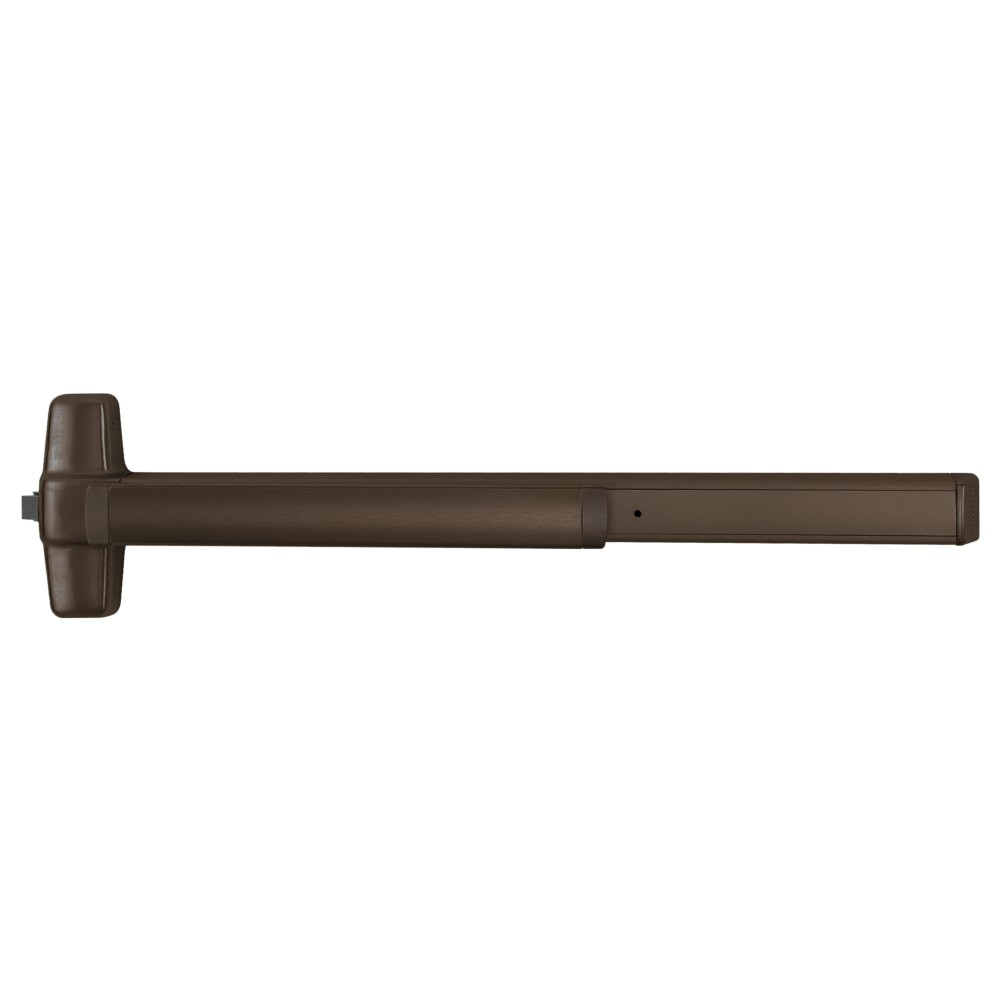

CXA98L-06 3 313 RHR Von Duprin 98 Series Classroom Rim Exit Device in Duranodic Dark Bronze
The CXA98L-06 3 313 RHR is a Von Duprin 98 Series rim exit device with L-06 Lever trim in Duranodic Dark Bronze (313/313), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | CXA98L-06 3 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Classroom |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Chexit Alarm |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-06 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
