Product Description

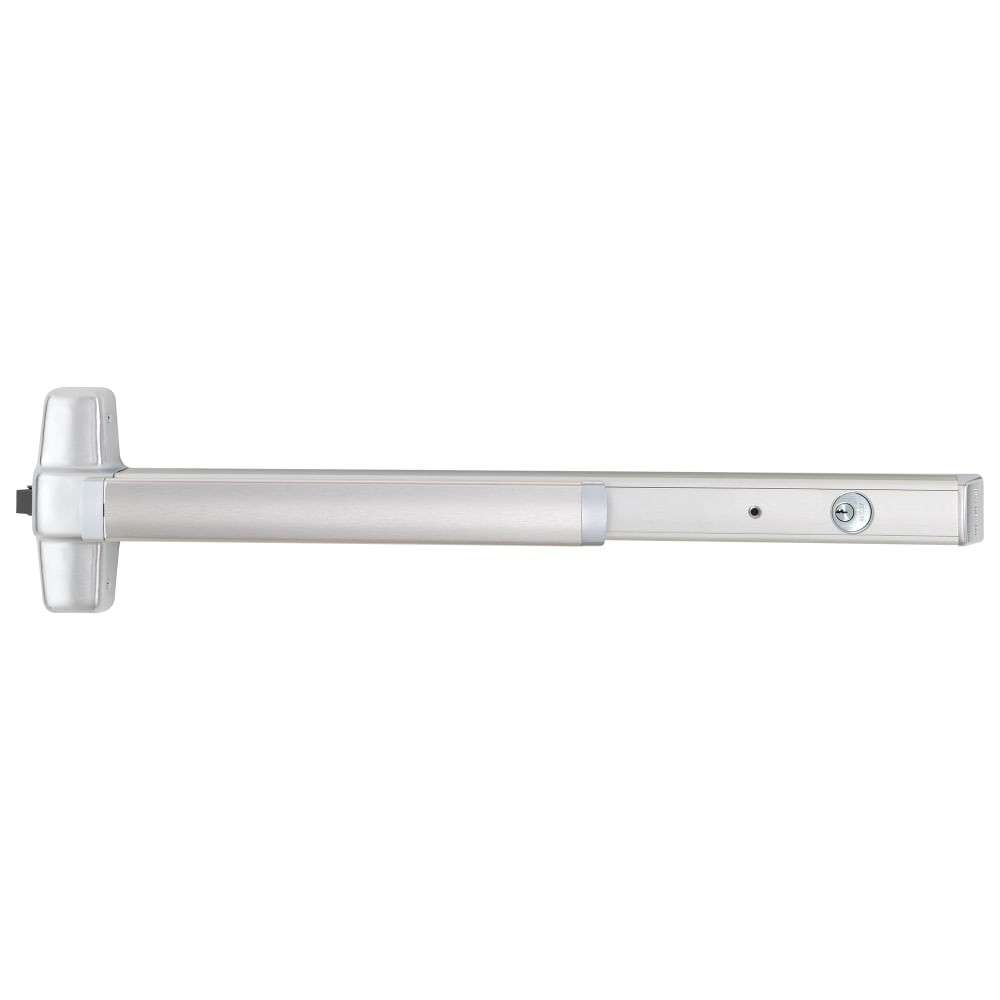

CXA98L-DT-17-F 3 32D RHR Von Duprin 98 Series Dummy Trim Fire Rated Rim Exit Device in Satin Stainless Steel
The CXA98L-DT-17-F 3 32D RHR is a Von Duprin 98 Series rim exit device with L-17 Lever trim in Satin Stainless Steel (US32D/630), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | CXA98L-DT-17-F 3 32D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Dummy Trim |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Stainless Steel (US32D/630) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Chexit Alarm |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-17 Lever trim — pull operation from outside
- Satin Stainless Steel finish
- Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
