Product Description

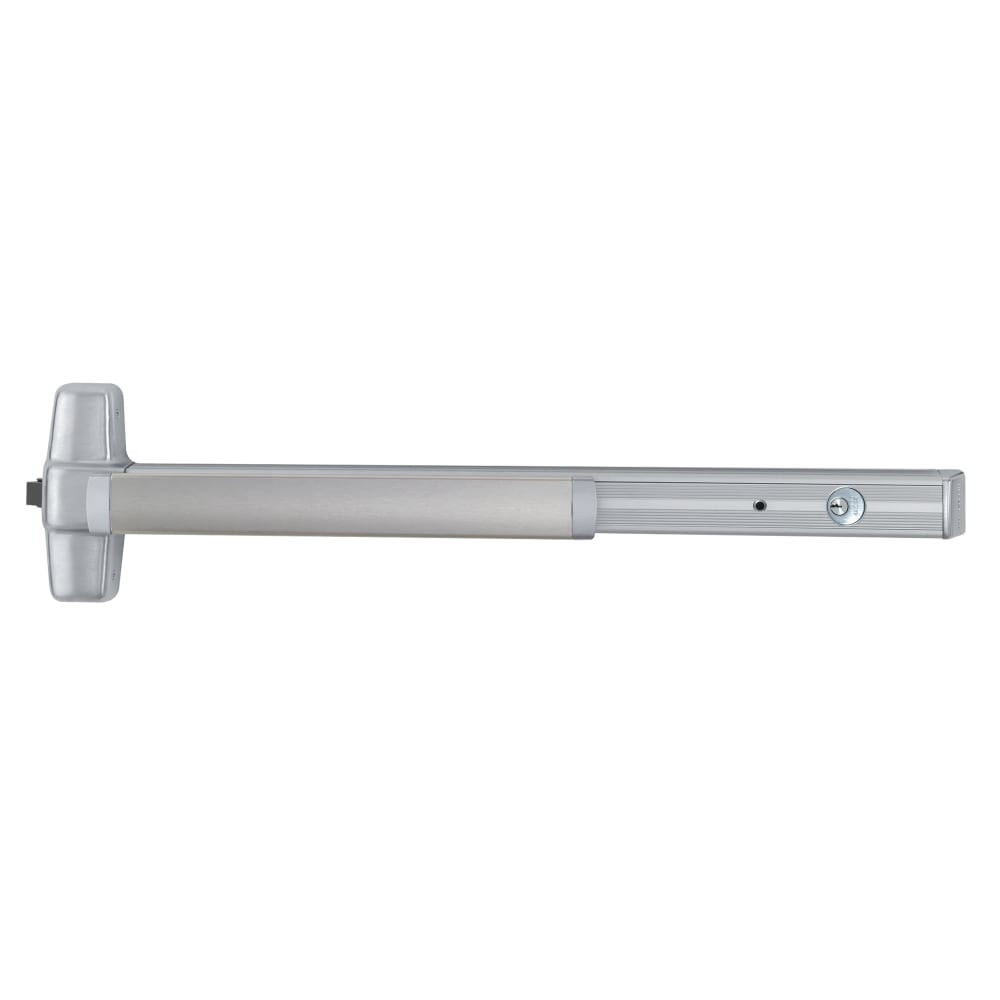

CXA99EO 3 28 Von Duprin Motorized Latch (CXA) 99 Series Exit Only Surface Vertical Rod Exit Device 28
The CXA99EO 3 28 is a Von Duprin 99 Series Rim exit device in 28, sized for 3' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Rim exit devices mount on the surface of the door without requiring mortise or internal routing. The 99 series rim devices are the easiest to install on retrofit jobs where door prep is limited. Great for quick code compliance upgrades on existing doors.
| Specifications | |
|---|---|
| Part Number | CXA99EO 3 28 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | 28 |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Chexit Alarm |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- 28 finish
- Chexit Alarm — Chexit delayed egress alarm — provides a 15-second delay with audible alarm before allowing exit
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
