Product Description

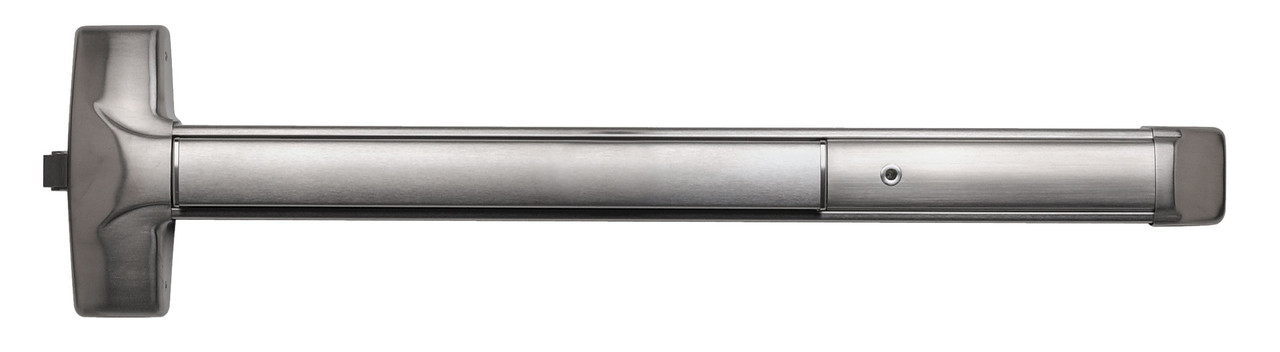

10 EE CD 630 99 36 Detex Advantex 10 Wide Stile Surface Vertical Rod Exit Device — Electrified — Surface Vertical Rod, Cylinder Dogging, Satin Stainless Steel
Access control on exit devices means managing who can open what, and when. The Detex Advantex 10 Series electrified exit device integrates with your building's access control system — locked until authorized, but always available for emergency egress per fire code.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 10 EE CD 630 99 36 |
| Series | Advantex 10 |
| Stile | Wide Stile |
| Mount Type | Surface Vertical Rod |
| Function | Electrified — Surface Vertical Rod, Cylinder Dogging |
| Finish | Satin Stainless Steel (630) |
| Strike | 99 strike |
| Door Size | 36" |
| Fire Rated | No |
| Grade | Grade 1 |
Compliance & Codes
UL Listed. ANSI/BHMA A156.3 Grade 1. Meets NFPA 101 Life Safety Code for means of egress. ADA compliant push-to-exit operation.
What's in the Box
Detex Advantex 10 exit device, strike, mounting hardware, installation template, installation instructions. Cylinder dogging hardware (cylinder sold separately unless specified).
Pro-Installer FAQ
Q: What's the difference between Advantex 10 and Value Series (V40/V50)?
A: The Advantex 10 is Detex's premium line with enhanced durability, smoother operation, and modern aesthetics. The Value Series (V40/V50) is the economy option. For high-traffic commercial applications, the Advantex is worth the upgrade.
Q: Can I retrofit an Advantex 10 onto an existing door prep?
A: Detex Advantex devices use standard ANSI exit device prep. In most cases, they'll retrofit directly onto doors prepped for other manufacturers' exit devices. Measure your existing prep and call us to confirm compatibility.
Q: What cylinder do I need for cylinder dogging?
A: Standard rim cylinder with Detex-compatible tailpiece. Cylinder dogging lets you hold the pushbar depressed with a key turn for high-traffic periods — the door pushes open without triggering the latch.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
