Product Description

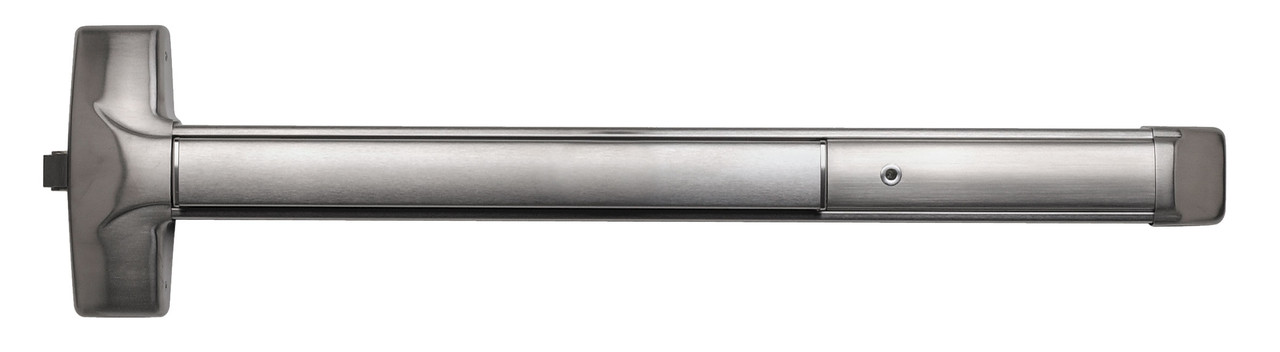

10 EA CD 630 99 36 Detex Advantex 10 Wide Stile Concealed Vertical Rod Exit Device — Exit Alarm — Concealed Vertical Rod, Cylinder Dogging, Satin Stainless Steel
Unauthorized exits cost businesses thousands annually in theft, liability, and security breaches. The Detex Advantex 10 Series with exit alarm combines Grade 1 exit device reliability with a built-in alarm — push the bar, door opens, alarm sounds. Your exit stays compliant for emergency egress while alerting staff to unauthorized use.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 10 EA CD 630 99 36 |
| Series | Advantex 10 |
| Stile | Wide Stile |
| Mount Type | Concealed Vertical Rod |
| Function | Exit Alarm — Concealed Vertical Rod, Cylinder Dogging |
| Finish | Satin Stainless Steel (630) |
| Strike | 99 strike |
| Door Size | 36" |
| Fire Rated | No |
| Grade | Grade 1 |
Compliance & Codes
UL Listed. ANSI/BHMA A156.3 Grade 1. Meets NFPA 101 Life Safety Code for means of egress. ADA compliant push-to-exit operation.
What's in the Box
Detex Advantex 10 exit device, strike, mounting hardware, installation template, installation instructions. Cylinder dogging hardware (cylinder sold separately unless specified).
Pro-Installer FAQ
Q: What's the difference between Advantex 10 and Value Series (V40/V50)?
A: The Advantex 10 is Detex's premium line with enhanced durability, smoother operation, and modern aesthetics. The Value Series (V40/V50) is the economy option. For high-traffic commercial applications, the Advantex is worth the upgrade.
Q: Can I retrofit an Advantex 10 onto an existing door prep?
A: Detex Advantex devices use standard ANSI exit device prep. In most cases, they'll retrofit directly onto doors prepped for other manufacturers' exit devices. Measure your existing prep and call us to confirm compatibility.
Q: What cylinder do I need for cylinder dogging?
A: Standard rim cylinder with Detex-compatible tailpiece. Cylinder dogging lets you hold the pushbar depressed with a key turn for high-traffic periods — the door pushes open without triggering the latch.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
