Product Description
EL98TP-US32D-4 Von Duprin with 990TP Thumbpiece Rim Device with Electric Latch Retraction in Satin Stainless
| Part Number Breakdown: EL98TP-US32D-4 | |
|---|---|
| 98 | 98 Series Rim Exit Device |
| EL | EL |
| TP | Thumbpiece Trim |
| US32D | Satin Stainless Steel (BHMA 630) |
| 4 | 4 Foot Door |
The EL98TP-US32D-4 is a Von Duprin 98 Series Rim exit device with Electric Latch Retraction (EL) in Satin Stainless Steel, sized for 4 Foot doors. Thumbpiece Trim — thumbpiece depressed to retract latch from outside. Key locks/unlocks thumbpiece operation.
Electric Latch Retraction (EL) — electric latch retraction via access control signal. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard.
Pro-Tip from Our Locksmiths: Electric Latch Retraction (EL) on the 98 Series lets the access control system retract the latch remotely. Card reader, fob, or buzzer signal retracts the latch — door opens without pushing the bar. 24VDC.
| Specifications | |
|---|---|
| Part Number | EL98TP-US32D-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 Series |
| Electronics | EL — Electric Latch Retraction (EL) |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Stainless Steel (US32D/630) |
| Door Size | 4 Foot |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 98 Series Rim exit device — Grade 1 architectural-grade panic hardware
- Electric Latch Retraction (EL) — electric latch retraction via access control signal
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Stainless Steel finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

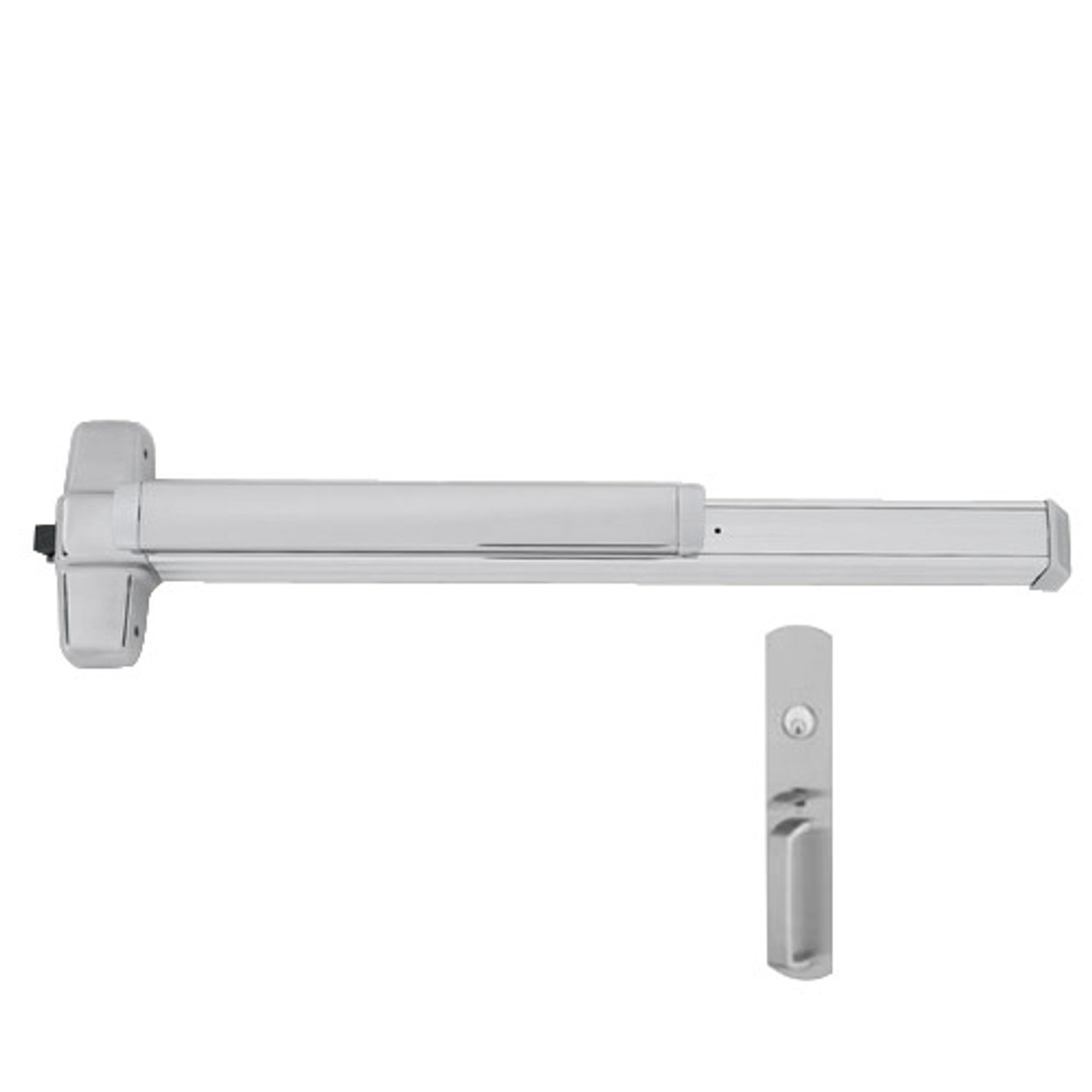

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
