Product Description

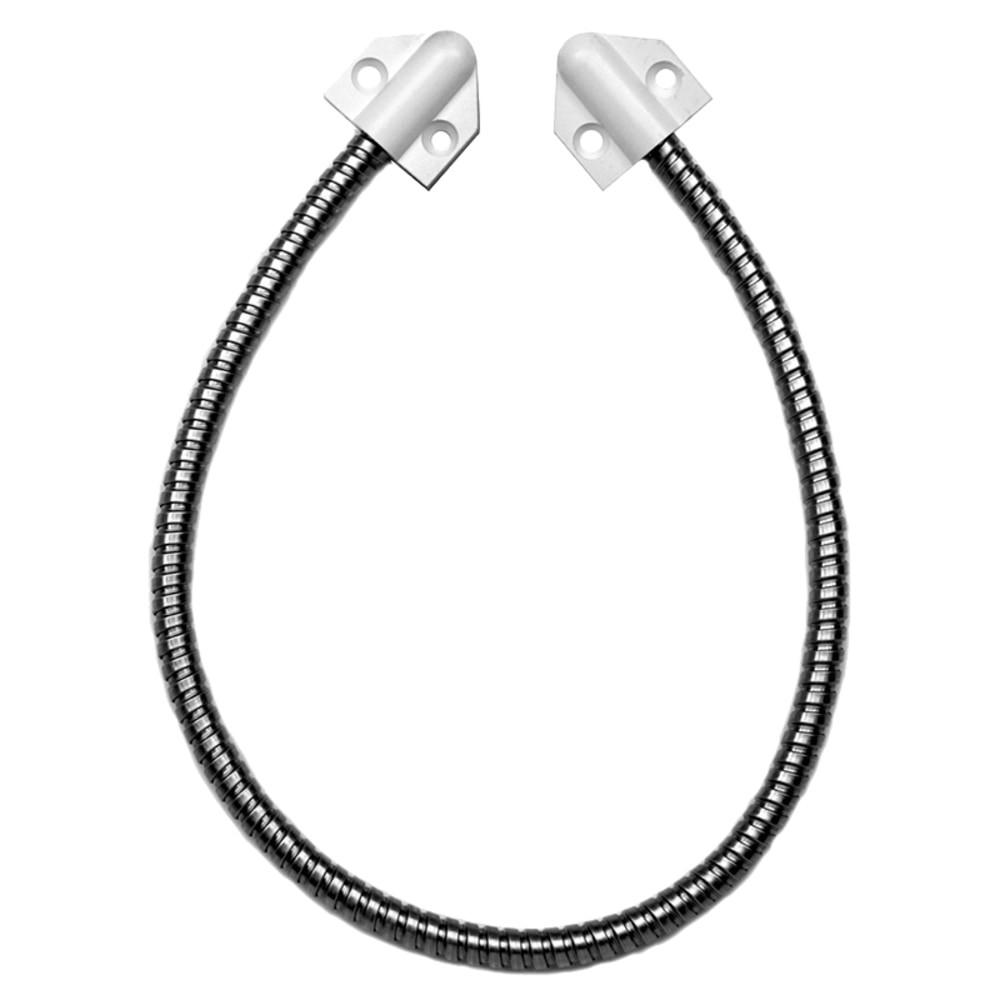

EPT-2 Von Duprin Electric Power Transfer, 2 Conductor
| Part Number Breakdown: EPT-2 | |
|---|---|
| EPT-2 | Electric Power Transfer, 2 Conductor |
| EPT | Electric Power Transfer |
| 2 | 2 Conductor |
The Von Duprin EPT-2 transfers 2 conductors of low-voltage power from the frame to the door through a concealed hinge-side channel. Every electrified exit device, electric latch retraction lock, or door-mounted card reader needs power transferred from the frame to the door — this is how you do it without exposed wires.
The EPT mounts in a mortised channel at the hinge side of the door and frame. Wires run through the transfer loop that flexes as the door opens and closes — rated for millions of cycles.
Pro-Tip from Our Locksmiths: Count your conductors before ordering. 2-conductor EPT handles basic power (positive + negative). If you're running power PLUS a signal wire (like REX or door position monitoring), you need 3+ conductors. Most QEL installations need 2 conductors. RX+QEL combos need at least 4.
| Specifications | |
|---|---|
| Part Number | EPT-2 |
| Brand | Von Duprin (Allegion) |
| Description | Electric Power Transfer, 2 Conductor |
| Type | Electric Power Transfer |
Authorized Von Duprin Distributor — Genuine OEM part with full factory warranty. Contact us or call (877) 365-5625.
Image shown is representative of the product line. Actual configuration may vary by part number.
