Product Description

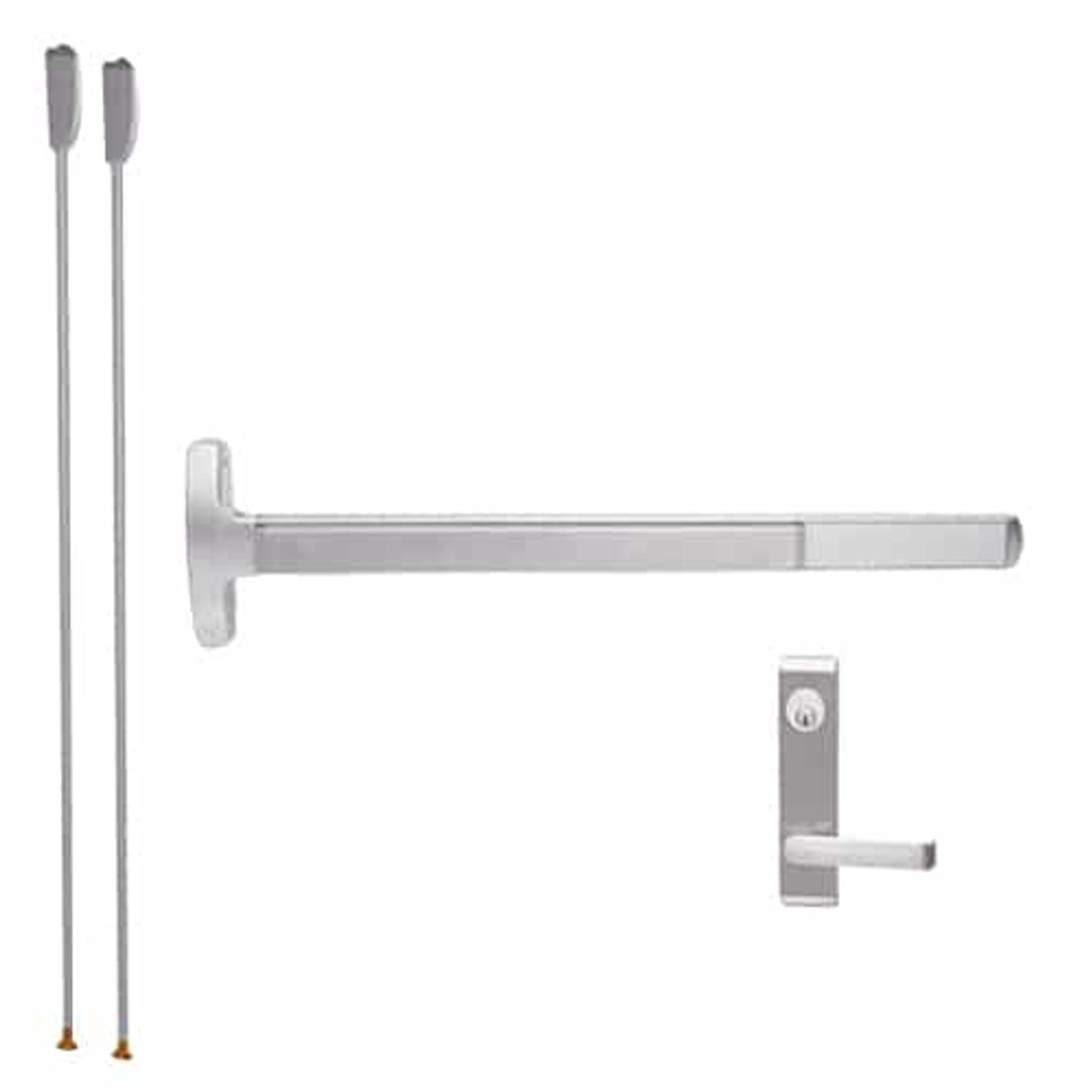

F-24-V-L-NL-Dane-US32-2-RHR Falcon 24 Series Fire Rated Surface Vertical Rod Device 712L-NL Dane Lever Trim with Night Latch in Polished Stainless Steel Finish

This device is for a 24" door

The Falcon F-24-V-L-NL-Dane-US32-2-RHR surface vertical device is used for wood or metal door applications. This surface-applied vertical rod device includes a sleek touch bar design with top latch and deadlocking standard, as well as a narrow stile that fits where you need it to. When we talk about strength, durability and plus fire-rated performance, The F-24-V Series is the complete package. This F-24-V Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Polished Stainless Steel finish
• Cylinders are not included
• Handing: Right hand reversible
• 712L-NL Dane lever trim with night latch
• Latchbolt: Top stainless steel, top latch 3/4" throw, bottom bolt 1/2" throw.
• Latch retention hold standard with top latch
• Device lengths: 2 feet (24 inch)
• Fire rated hardware
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed. All machine (AMS) standard.
• Strike: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor. (Included)
• Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard.
