Product Description

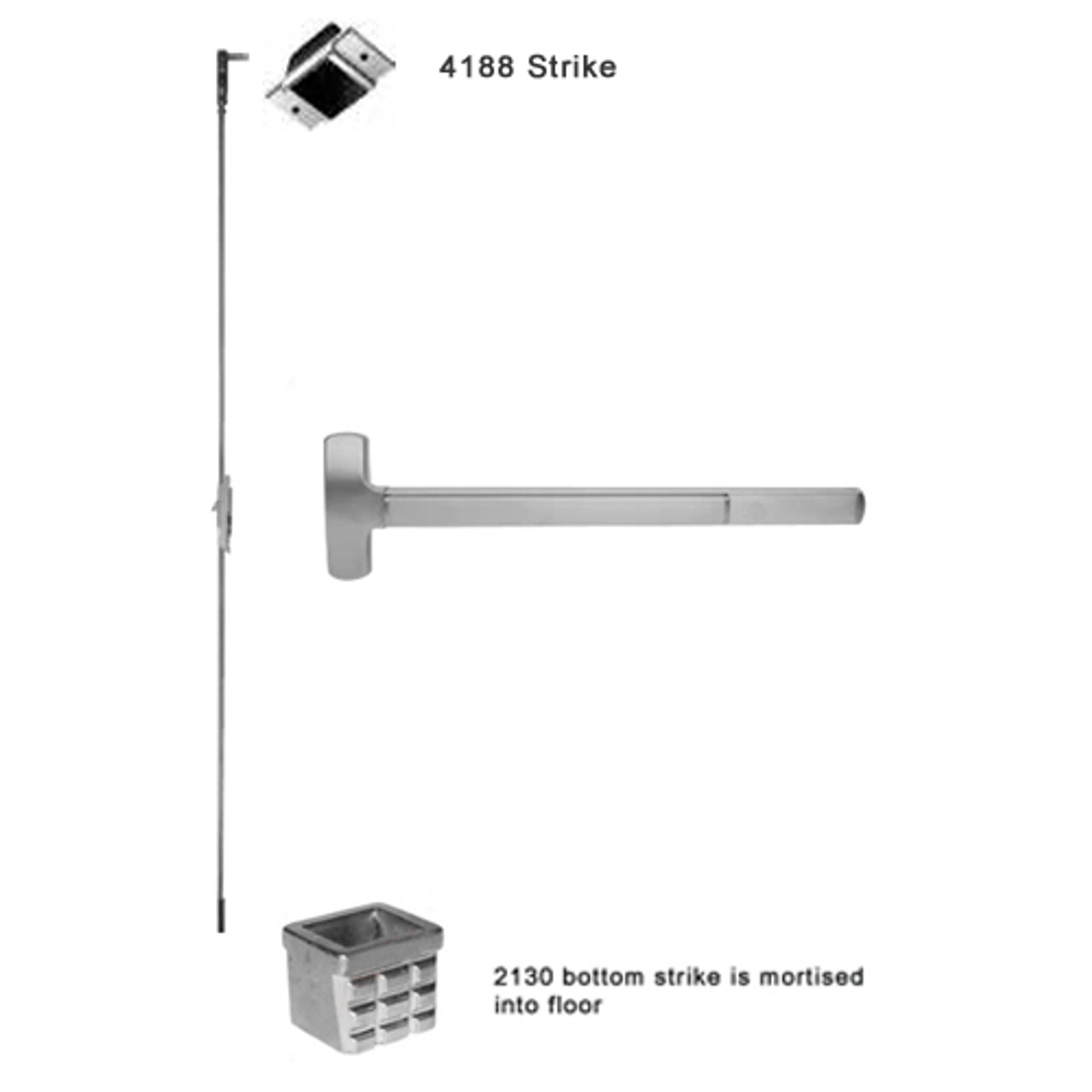

F-25-C-TP-US10-2 Falcon 25 Series Fire Rated Concealed Vertical Rod Devices with 512TP Thumbpiece Trim in Satin Bronze Finish

This device is for a 24" door

The Falcon F-25-C-TP-US10-2 Concealed vertical rod device is used for wood and metal door applications. The Falcon F-25-C fire rated series concealed vertical rod device offers extraordinary value, clean styling and the security advantages of two-point latching. The Falcon F-25-C Series device lets you combine the safety of a fire-rated device. This series patented center slide mechanism allows you to easy rod adjustment in the field. The 25-C fire rated series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Satin Bronze finish
• Cylinders are not included
• Handing: Non Handed
• 512TP Thumbpiece trim
• Latchbolt: Stainless steel, 3/4" throw
• Device lengths: 2 feet (24 inch)
• Doors: 1-3/4" thick, wood or metal
• Fire rated hardware
• Projections: 2-3/4" maximum
• Strike: 4188 mortised top, 2130 bottom standard
• Deadlocking latchbolt standard
• Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.
• Clean design with no exposed screws or rivets on the back of the device
• Vertical rods: Furnished to length based on 40-1/4" horizontal CL to finished floor and a 7'0" door.
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
