Product Description
The Sargent LC-8204-LE1J-10B is a 8200 Series Storeroom mortise lock in Oil Rubbed Bronze (US10B/613). Outside lever is always locked — key required for every entry. Inside lever is always free for exit.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8204-LE1J-10B | |
| LC | Interchangeable Core prep |
| 8204 | Series 8200, Storeroom function |
| LE1J | Trim/lever design: LE1 Escutcheon, J Lever |
| 10B | Finish: Oil Rubbed Bronze |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8204-LE1J-10B |
| Series | Sargent 8200 |
| Function | Storeroom |
| Trim / Lever | LE1 Escutcheon, J Lever |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Storeroom function — Outside lever is always locked — key required for every entry. Inside lever is a
- Oil Rubbed Bronze (US10B/613) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

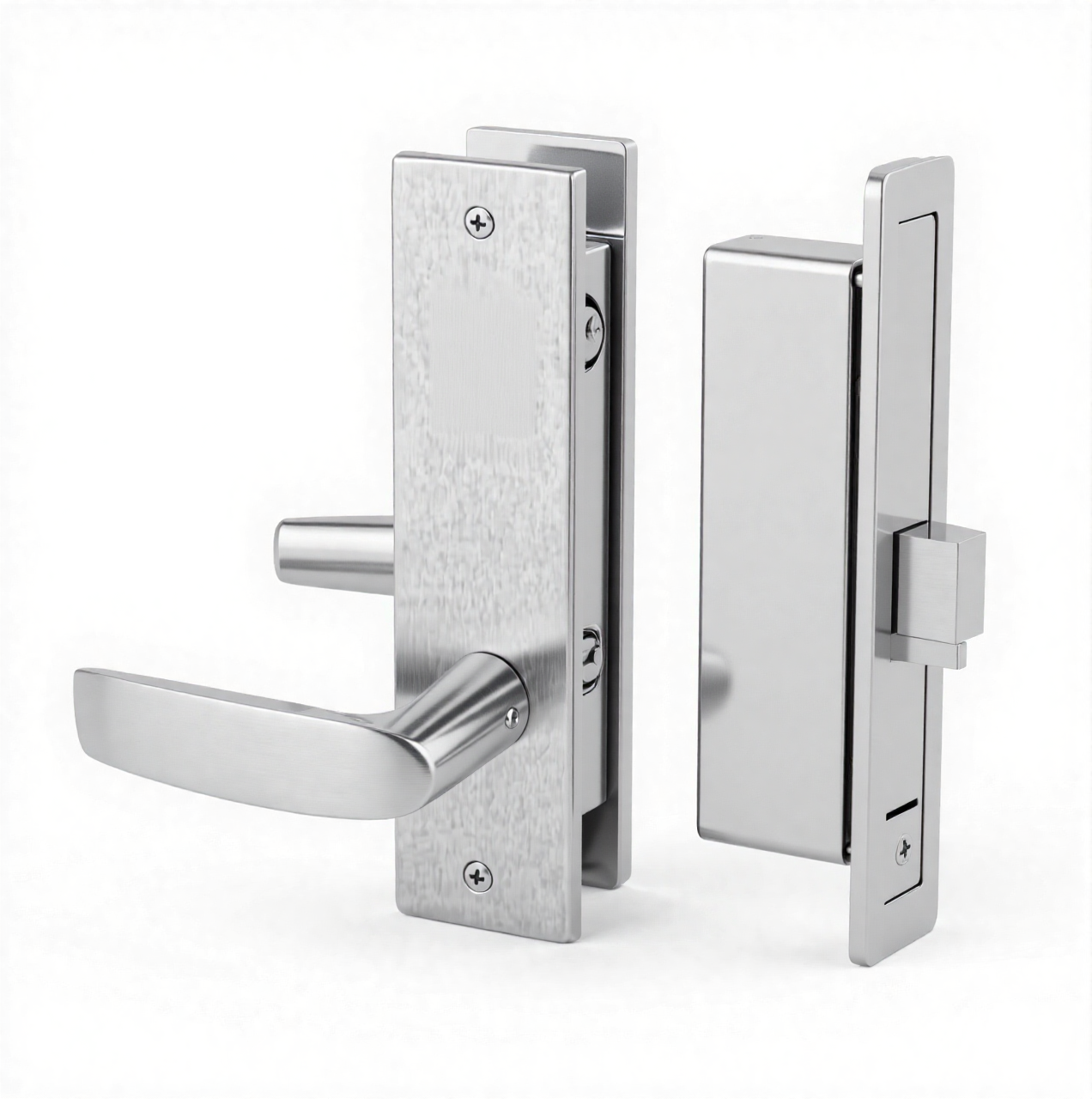

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
