Product Description

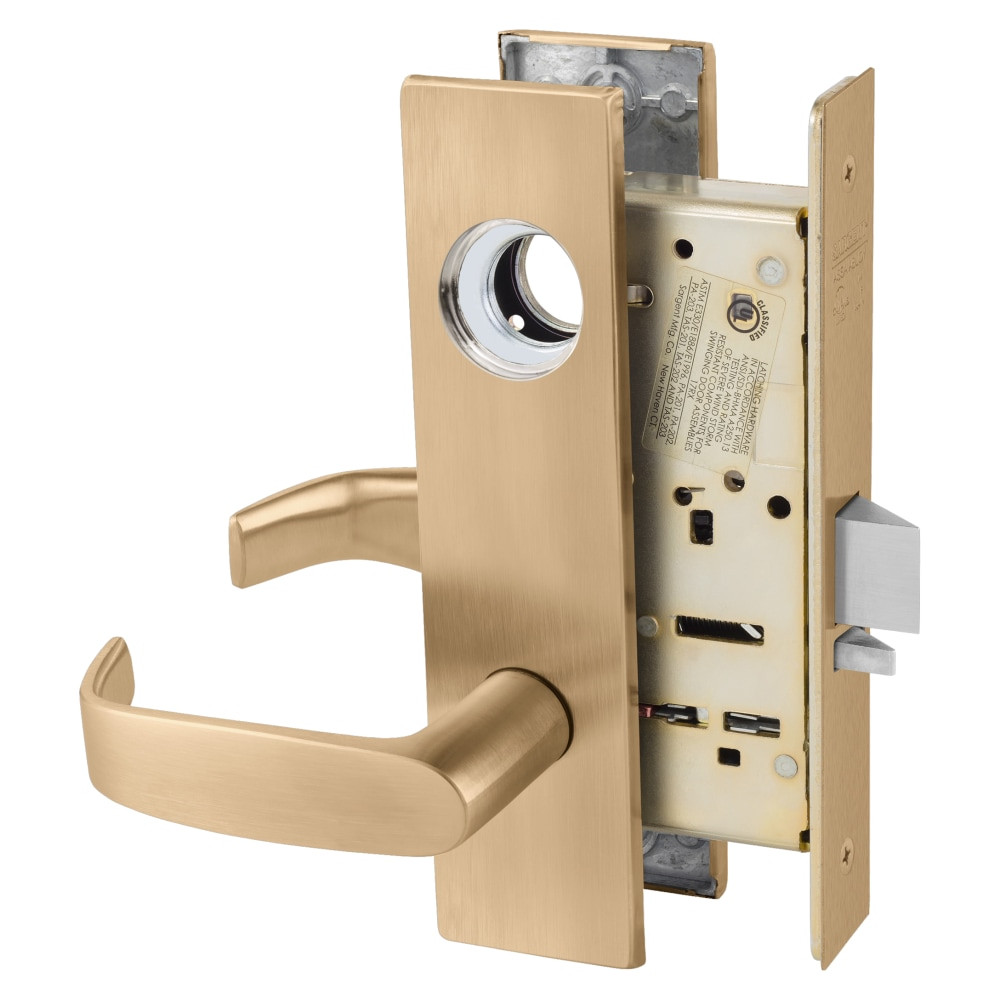

The Sargent LC-8204-LW1L-10 is a 8200 Series Storeroom mortise lock in Satin Bronze (US10/612). Outside lever is always locked — key required for every entry. Inside lever is always free for exit.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8204-LW1L-10 | |
| LC | Interchangeable Core prep |
| 8204 | Series 8200, Storeroom function |
| LW1L | Trim/lever design: LW1 Escutcheon, L Lever |
| 10 | Finish: Satin Bronze |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8204-LW1L-10 |
| Series | Sargent 8200 |
| Function | Storeroom |
| Trim / Lever | LW1 Escutcheon, L Lever |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Storeroom function — Outside lever is always locked — key required for every entry. Inside lever is a
- Satin Bronze (US10/612) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
