Product Description

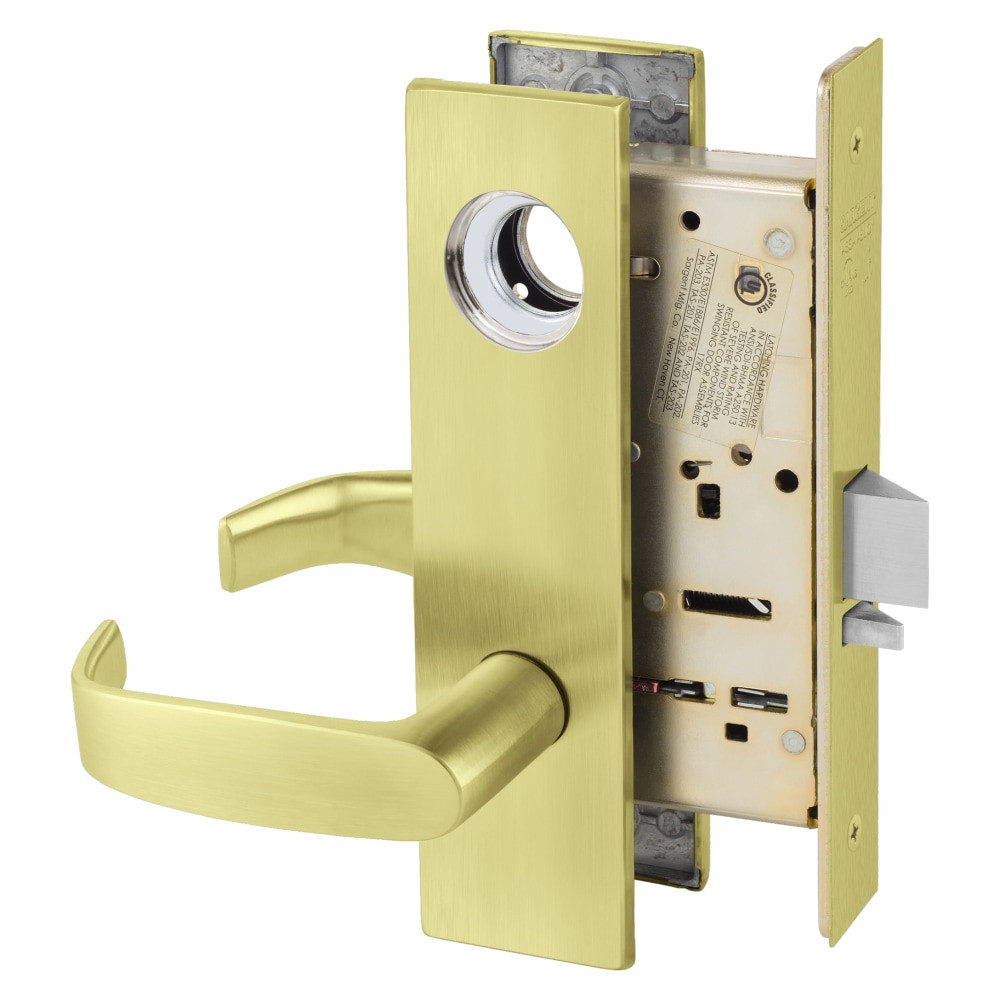

The Sargent LC-8205-LE1L-4 is a 8200 Series Entry/Office mortise lock in . Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8205-LE1L-4 | |
| LC | Interchangeable Core prep |
| 8205 | Series 8200, Entry/Office function |
| LE1L | Trim code: LE1L |
| 4 | Finish code: 4 |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8205-LE1L-4 |
| Series | Sargent 8200 |
| Function | Entry/Office |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Entry/Office function — Key locks and unlocks the outside lever. Inside lever is always free for exit. C
- finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

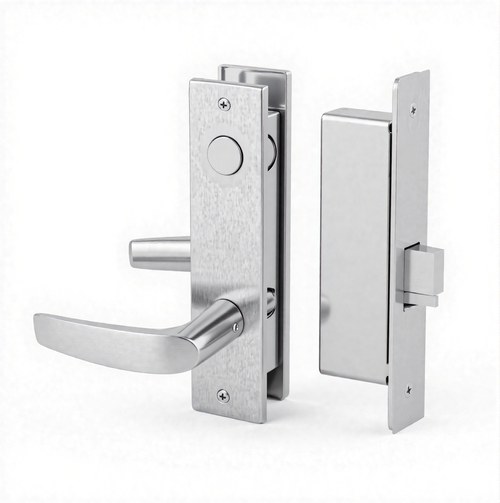

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
