Product Description
The Sargent LC-8205-LNP-3 is a 8200 Series Entry/Office mortise lock in Bright Brass (US3/605). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8205-LNP-3 | |
| LC | Interchangeable Core prep |
| 8205 | Series 8200, Entry/Office function |
| LNP | Trim/lever design: LN Rose, P Lever |
| 3 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8205-LNP-3 |
| Series | Sargent 8200 |
| Function | Entry/Office |
| Trim / Lever | LN Rose, P Lever |
| Finish | Bright Brass (US3/605) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Entry/Office function — Key locks and unlocks the outside lever. Inside lever is always free for exit. C
- Bright Brass (US3/605) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

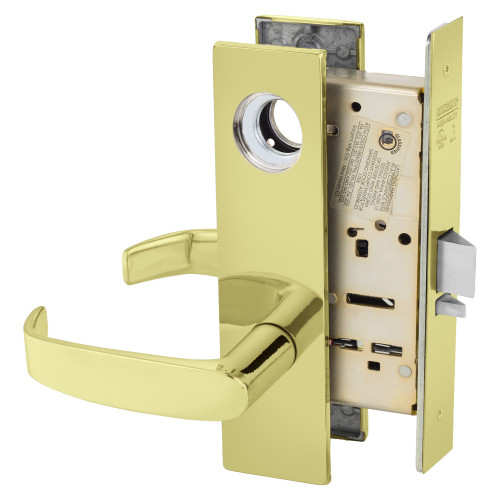

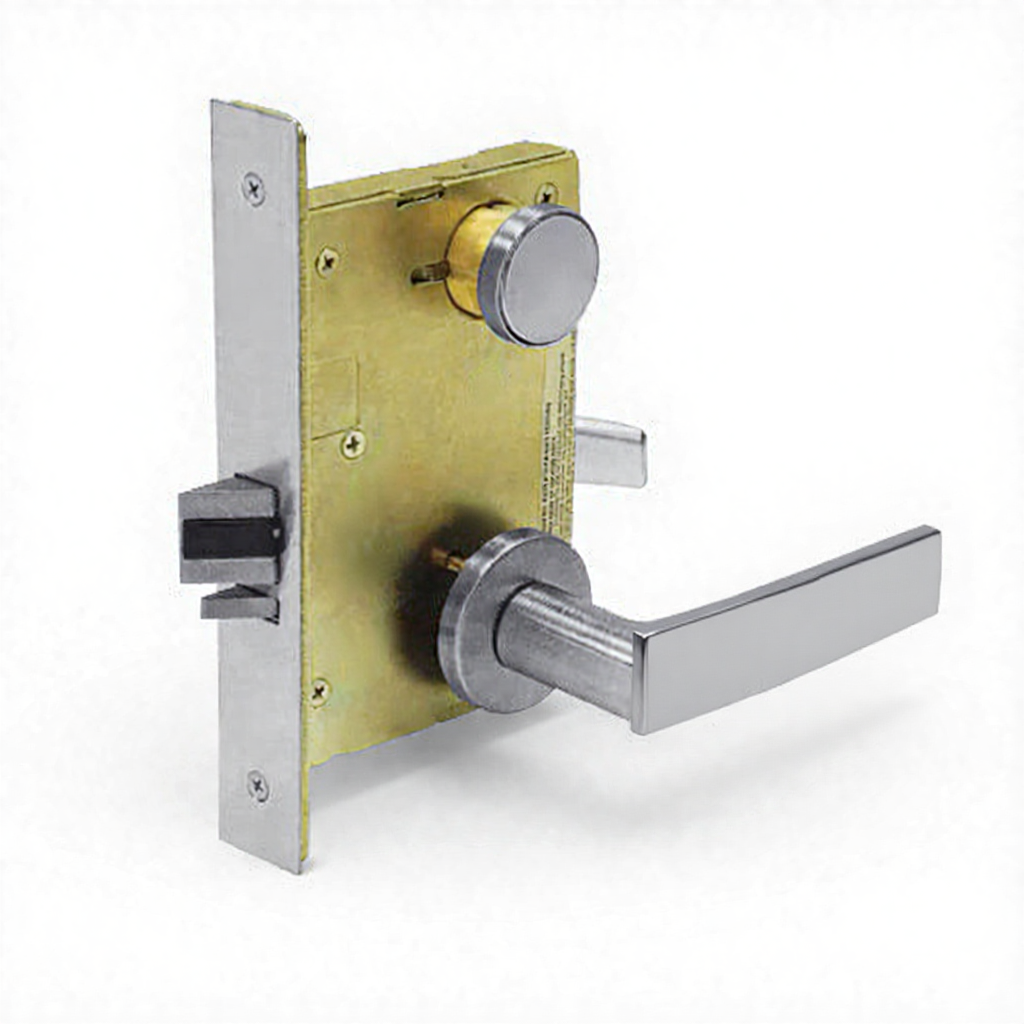

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
