Product Description
The Sargent LC-8217-LNE-BSP is a 8200 Series Institution mortise lock in Black Suede (BSP). Both levers locked and unlocked by key only. No thumbturn or push-button.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8217-LNE-BSP | |
| LC | Interchangeable Core prep |
| 8217 | Series 8200, Night Latch function |
| LNE | Trim/lever design: LN Rose, E Lever |
| BSP | Finish: Black Suede |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8217-LNE-BSP |
| Series | Sargent 8200 |
| Function | Institution |
| Trim / Lever | LN Rose, E Lever |
| Finish | Black Suede (BSP) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Institution function — Both levers locked and unlocked by key only. No thumbturn or push-button.
- Black Suede (BSP) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

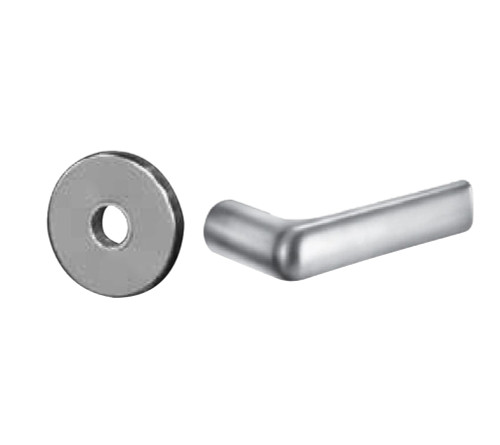

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
