Product Description
The Sargent LC-8217-LNF-3 is a 8200 Series Institution mortise lock in Bright Brass (US3/605). Both levers locked and unlocked by key only. No thumbturn or push-button.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8217-LNF-3 | |
| LC | Interchangeable Core prep |
| 8217 | Series 8200, Night Latch function |
| LNF | Trim/lever design: LN Rose, F Lever |
| 3 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8217-LNF-3 |
| Series | Sargent 8200 |
| Function | Institution |

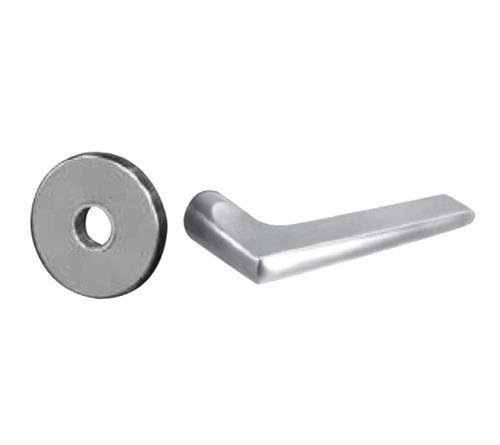

| Trim / Lever | LN Rose, F Lever |
| Finish | Bright Brass (US3/605) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Institution function — Both levers locked and unlocked by key only. No thumbturn or push-button.
- Bright Brass (US3/605) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
